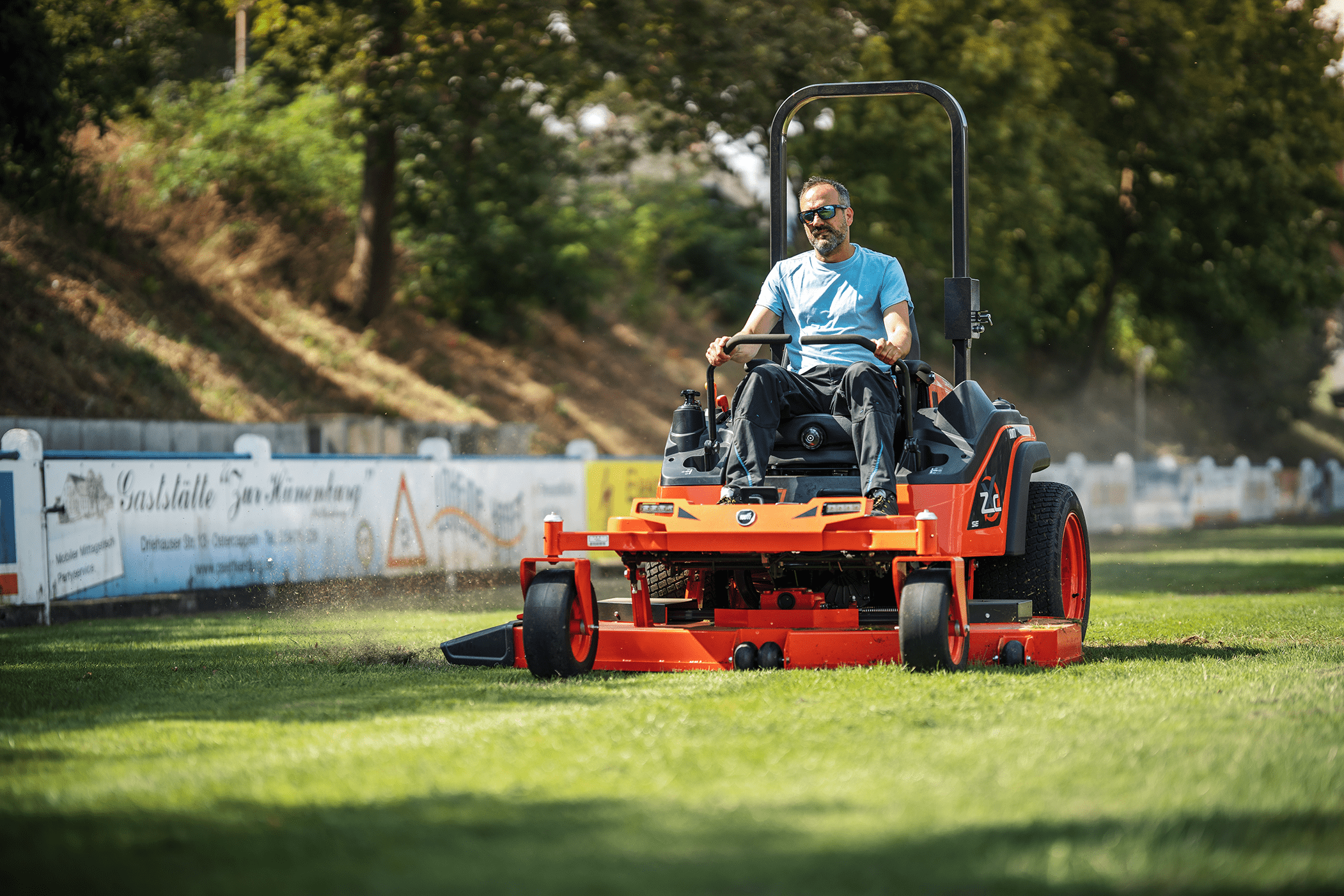

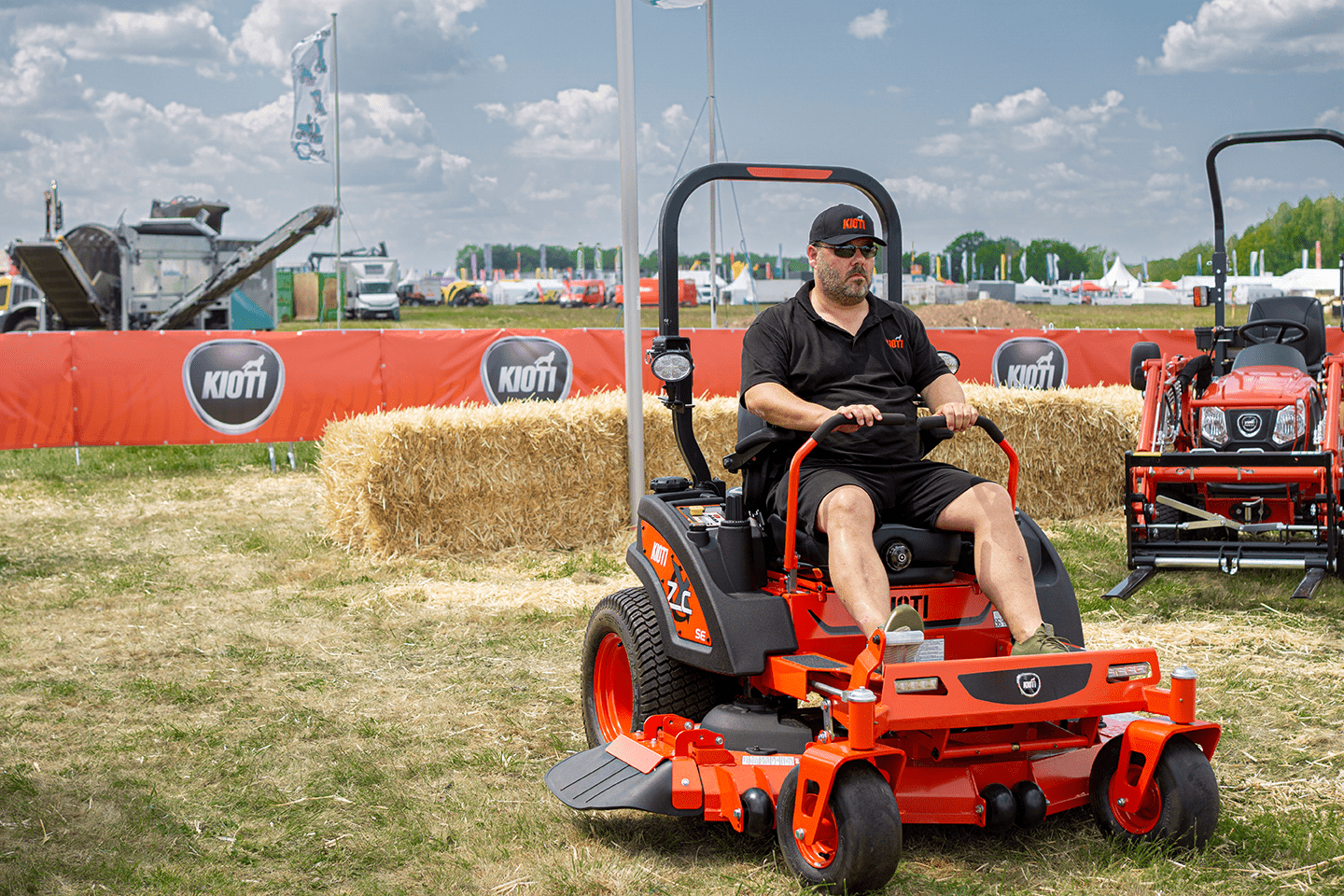

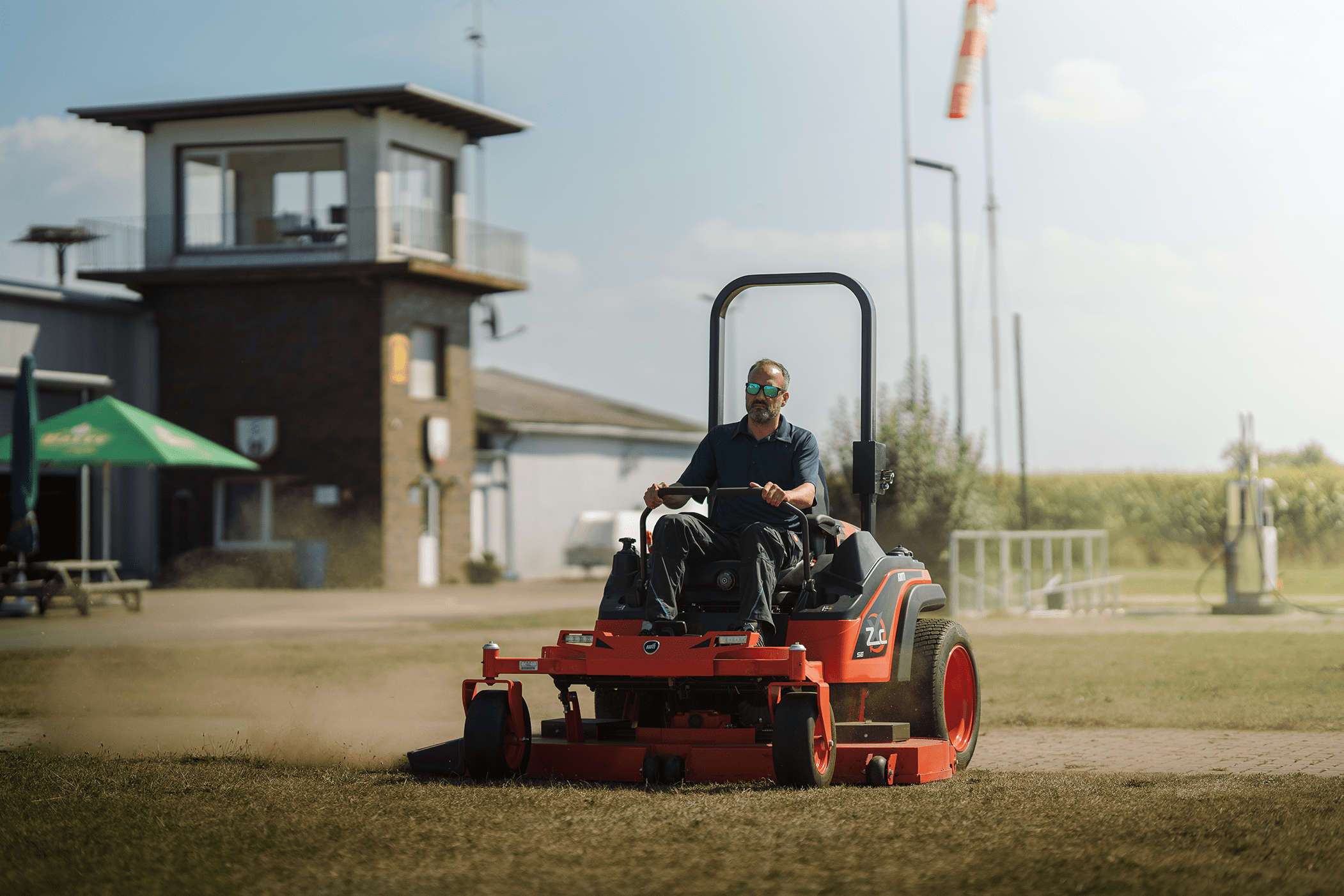

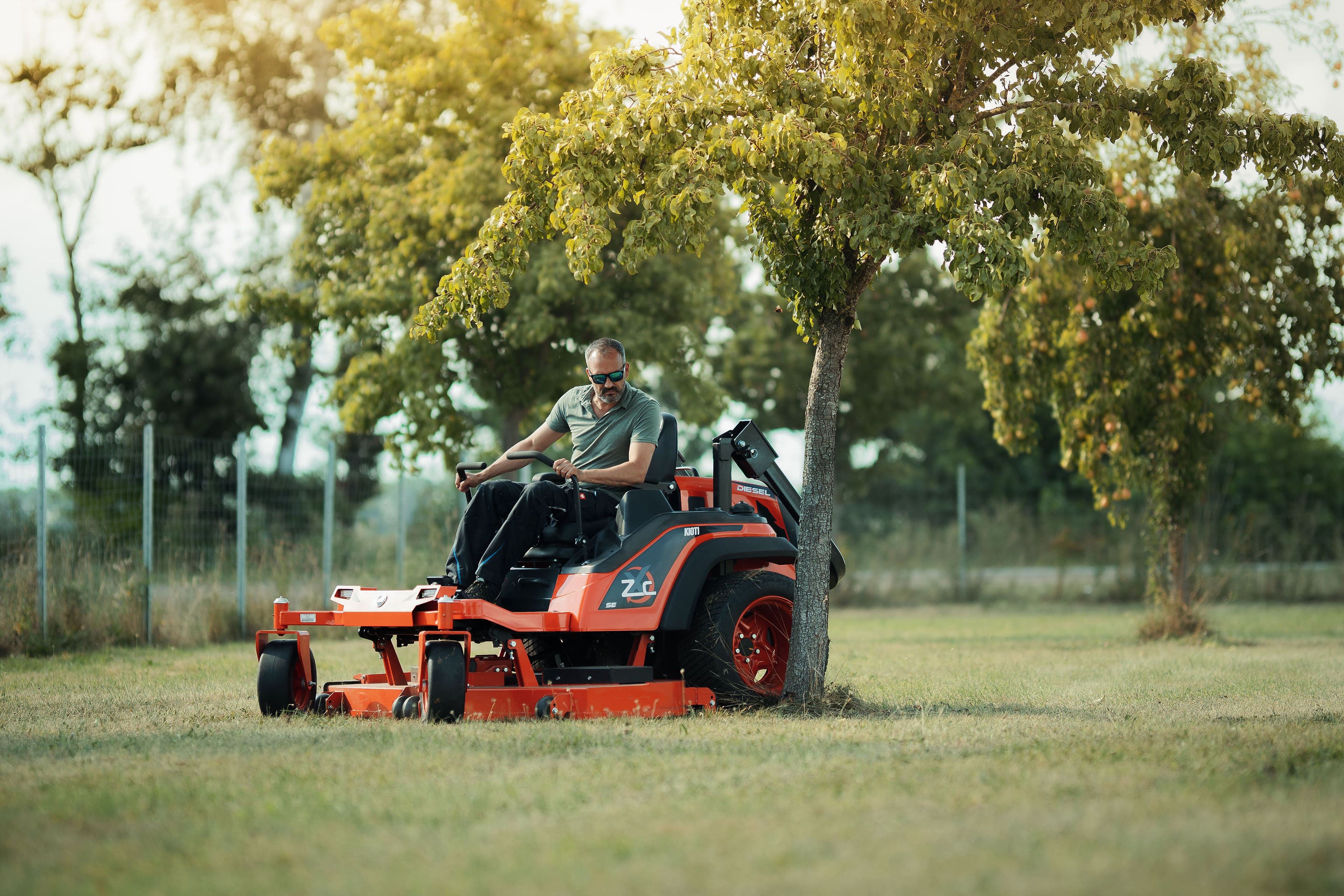

KIOTI zero-turn circle mower (ZTR) - built for high service performance
Overview
Click the button to find out the characteristics
of each point of the products

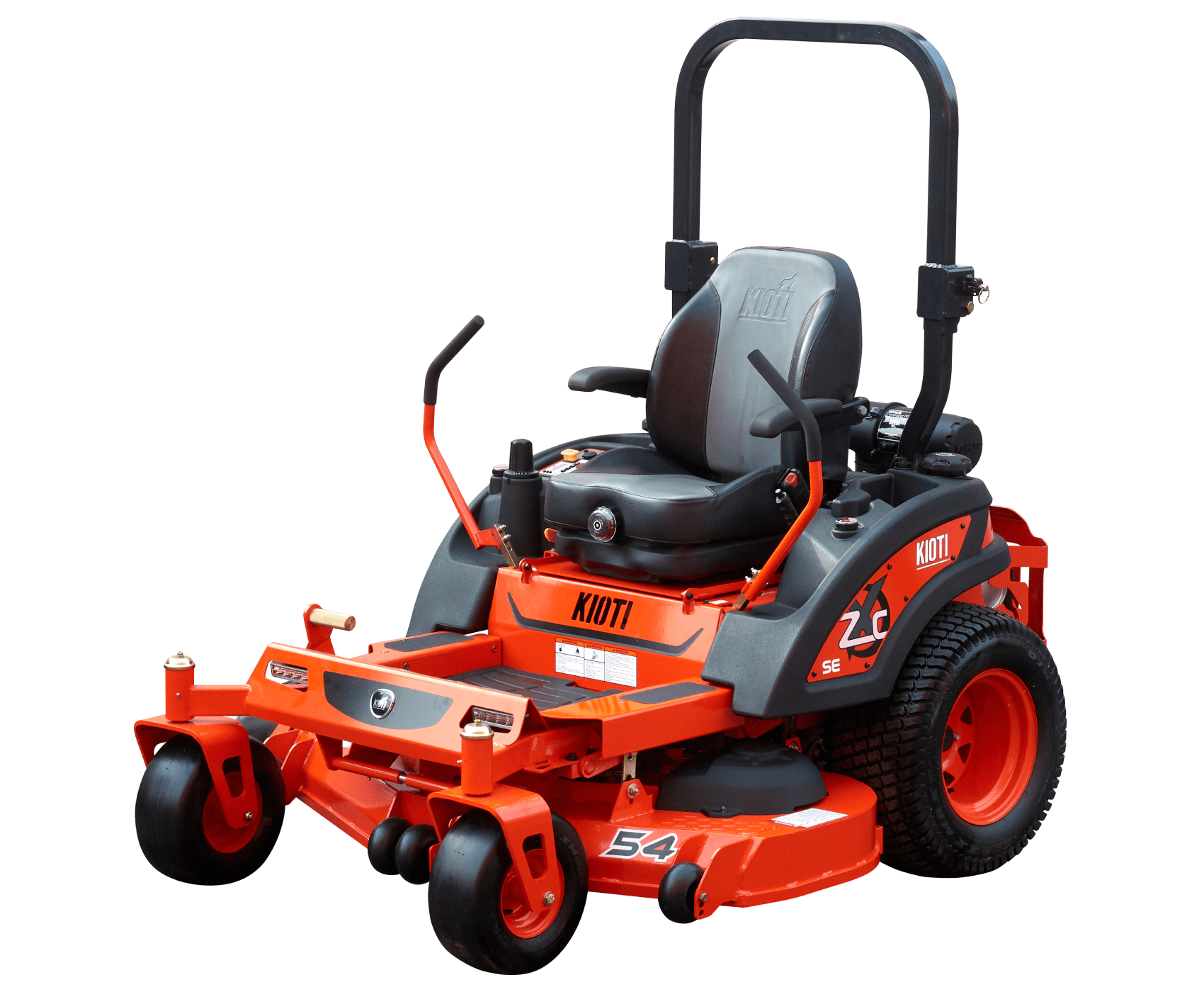

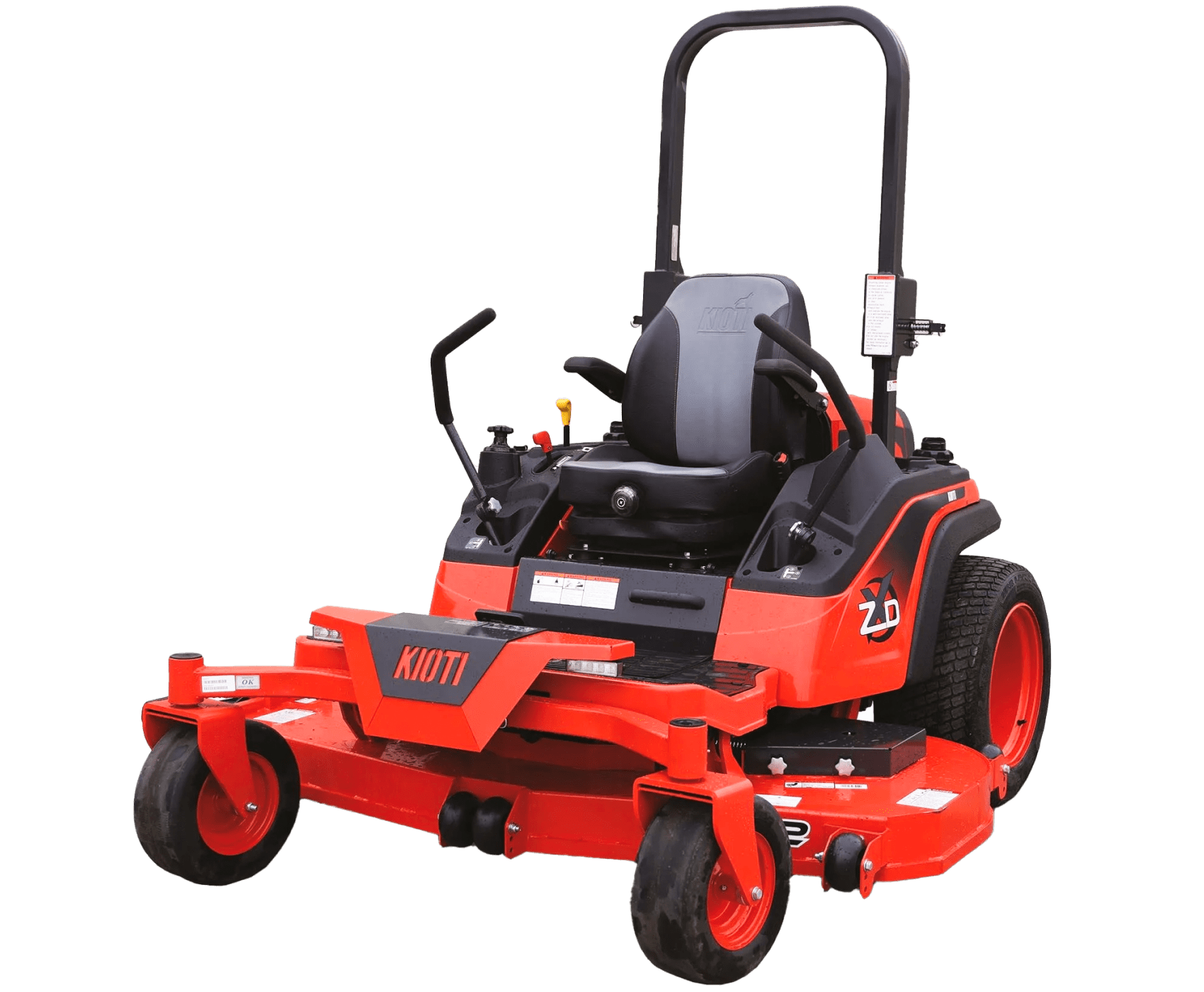

Front
Corner

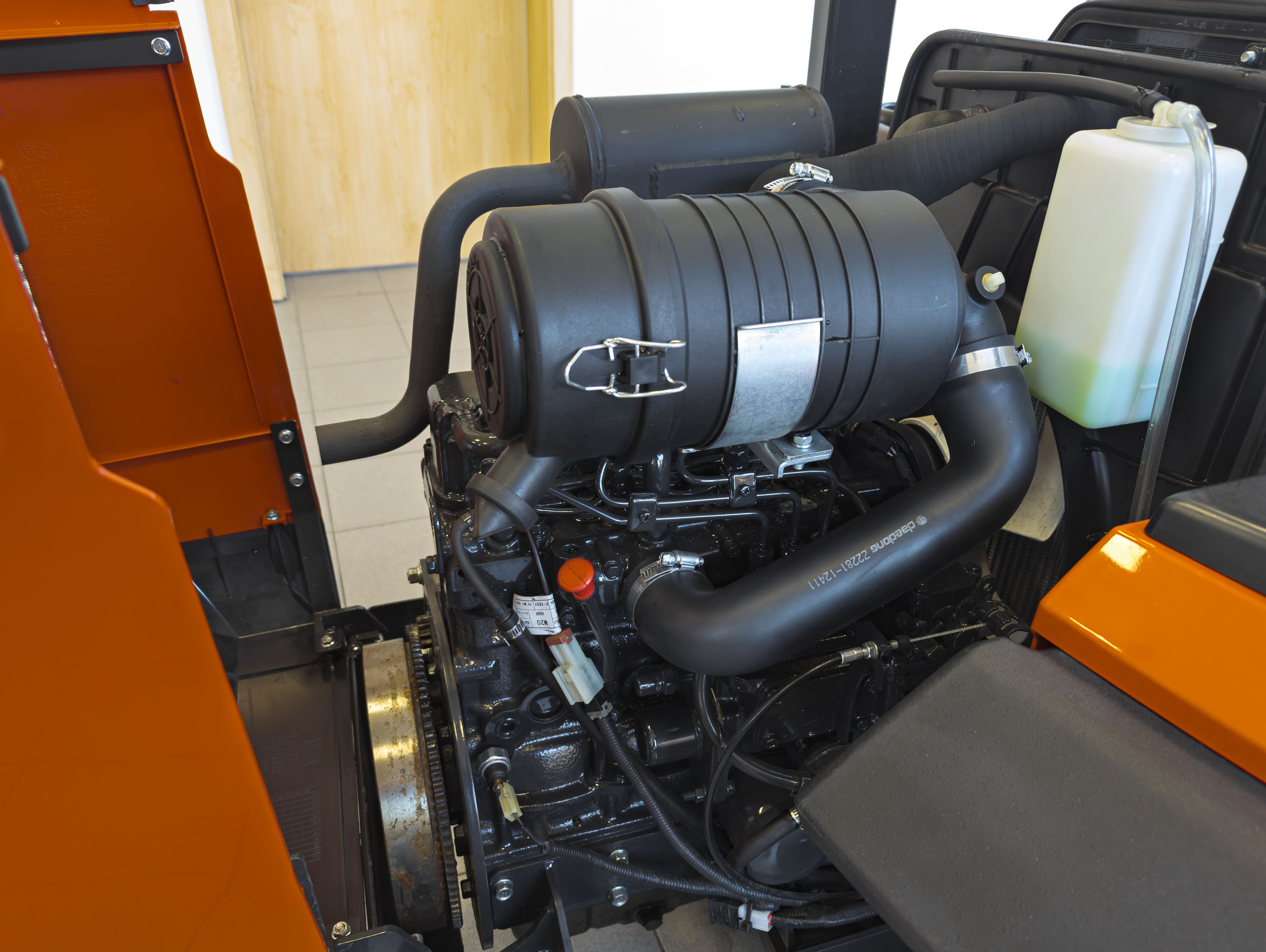

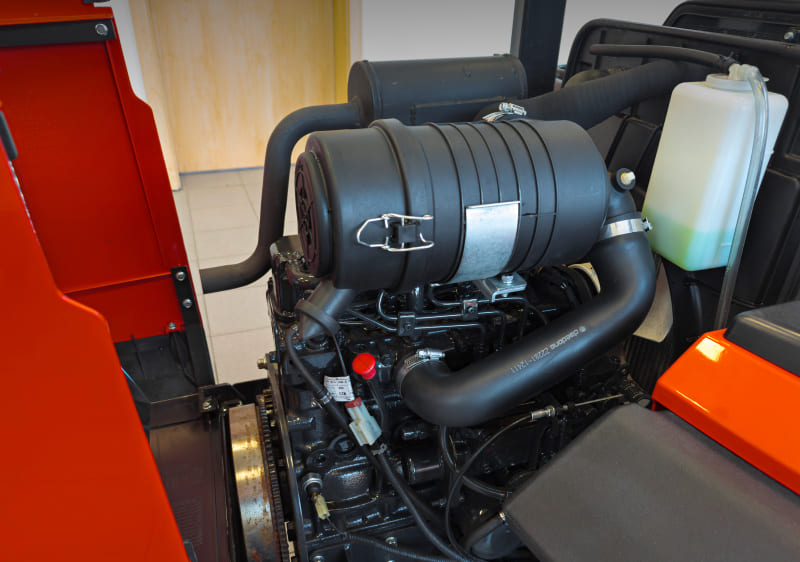

POWERFUL ENGINE
You can choose from petrol engines from Kawasaki or Briggs & Stratton or a 1.2l KIOTI diesel variant. Long service life and always sufficient power guaranteed.

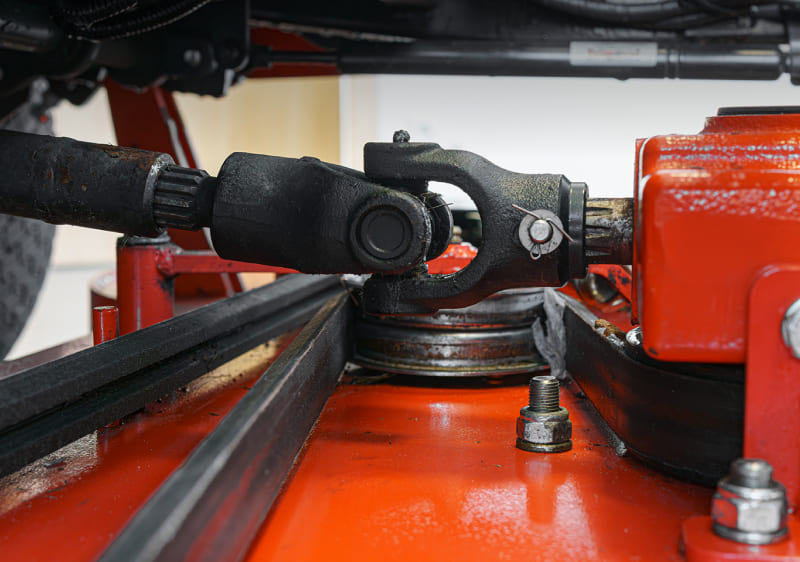

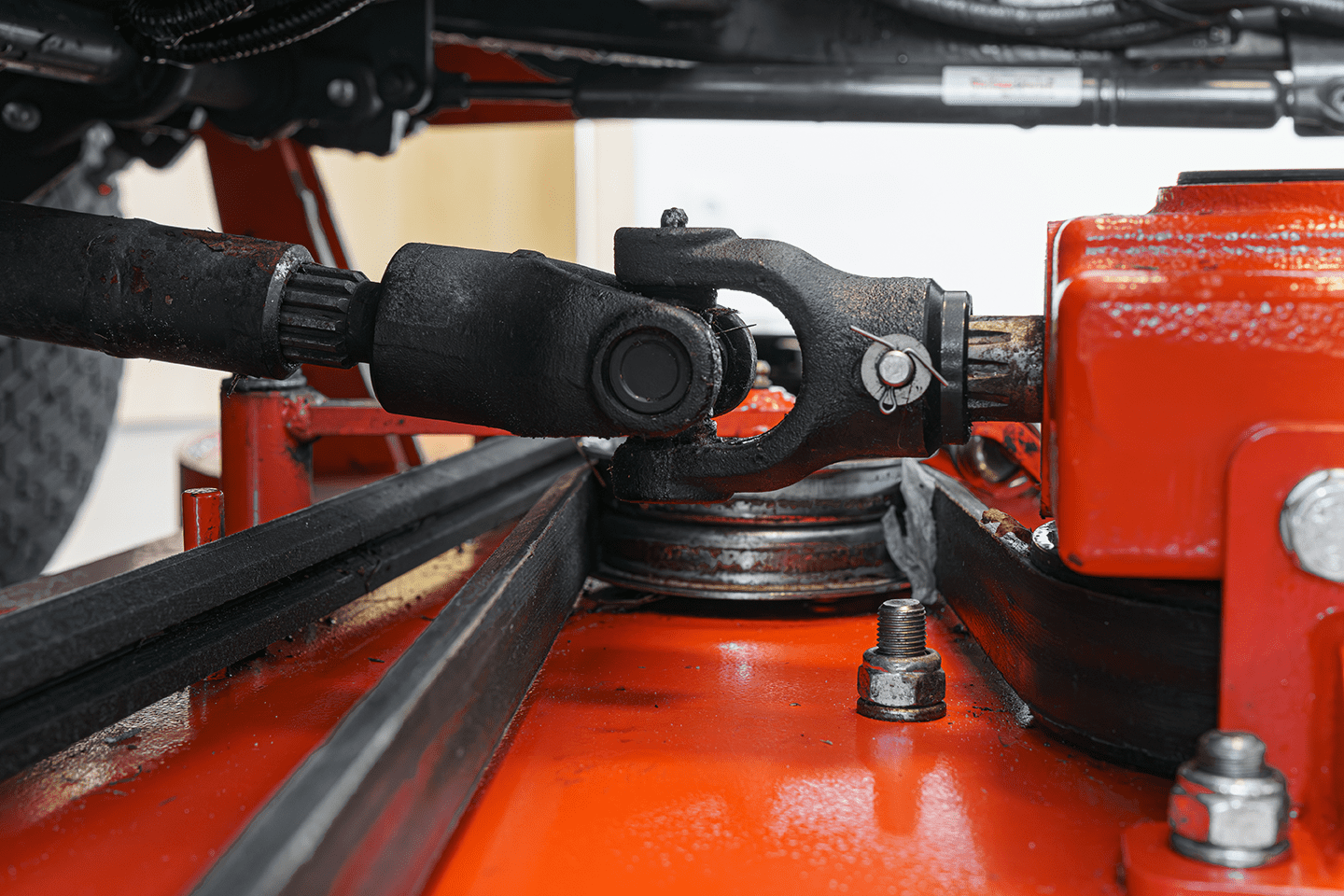

DRIVE SHAFT
The mower of The ZXD diesel model is driven directly by the engine via a shaft for maximum and loss-free power transmission.

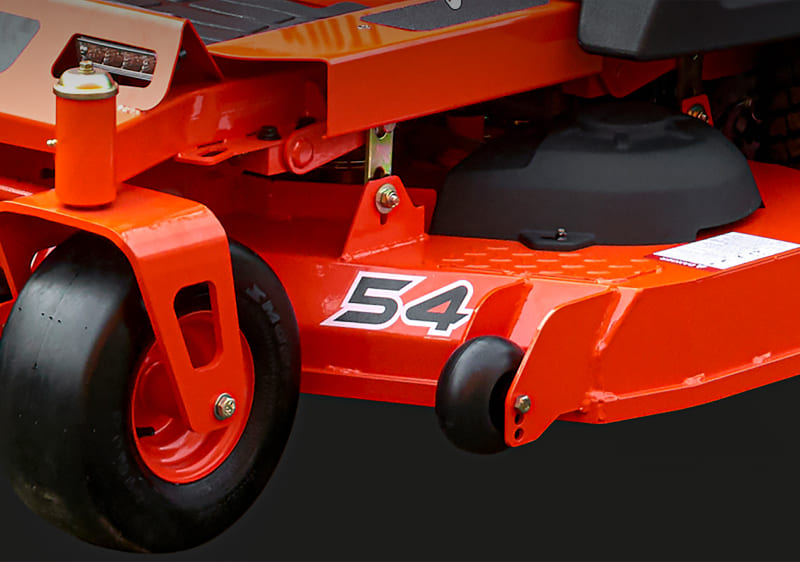

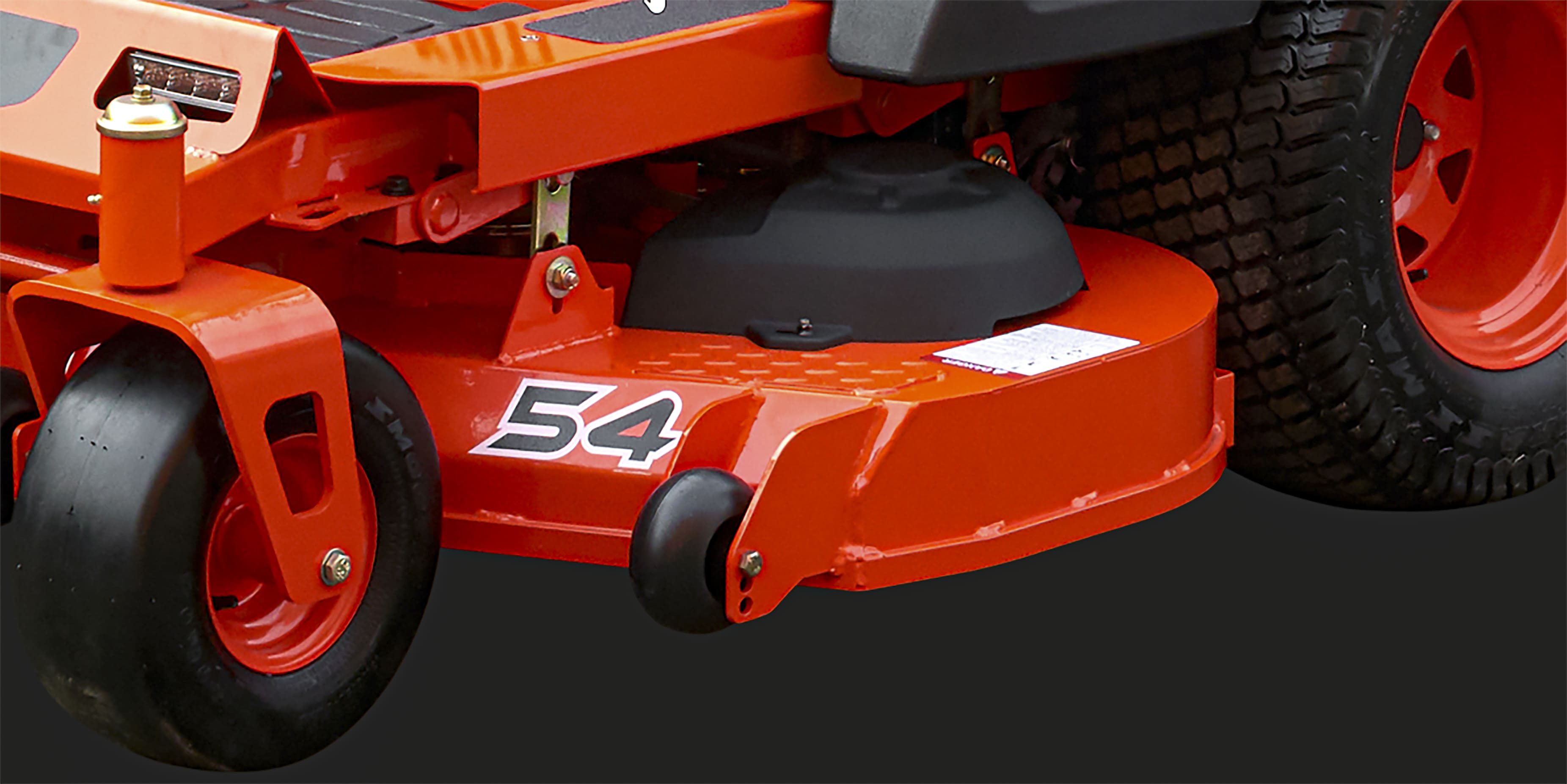

ROBUST MOWERS

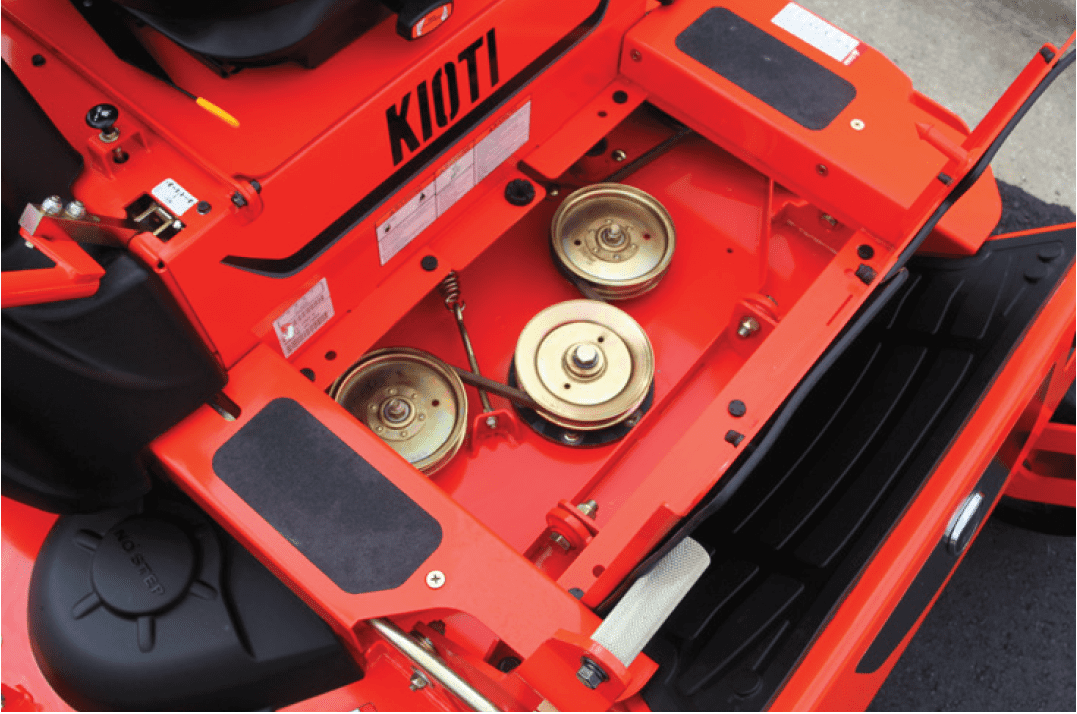

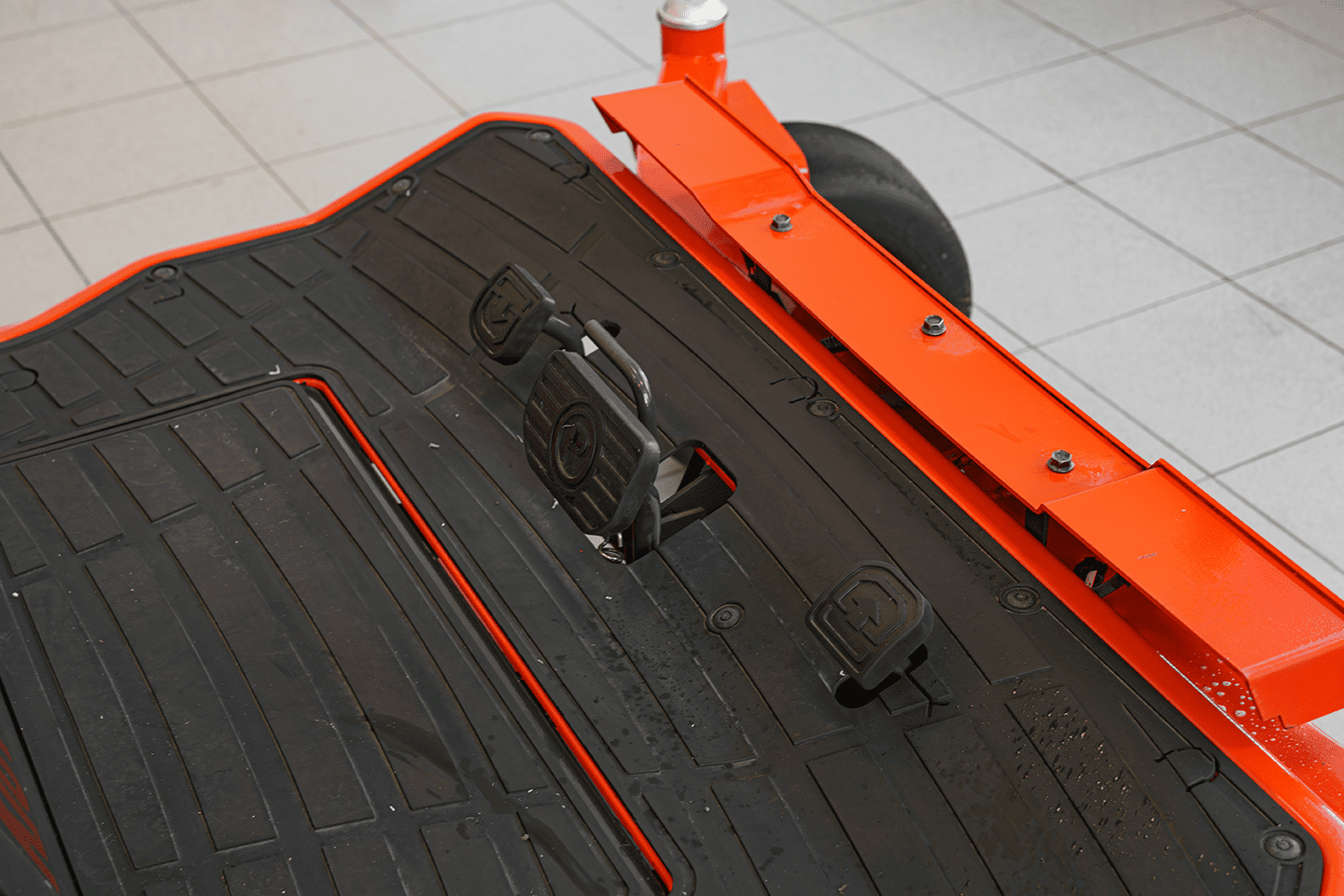

The welded mowers are indestructible and deliver a top cut. The drive can be accessed for maintenance via a flap in the driver's platform. A mulching kit is available as an option.

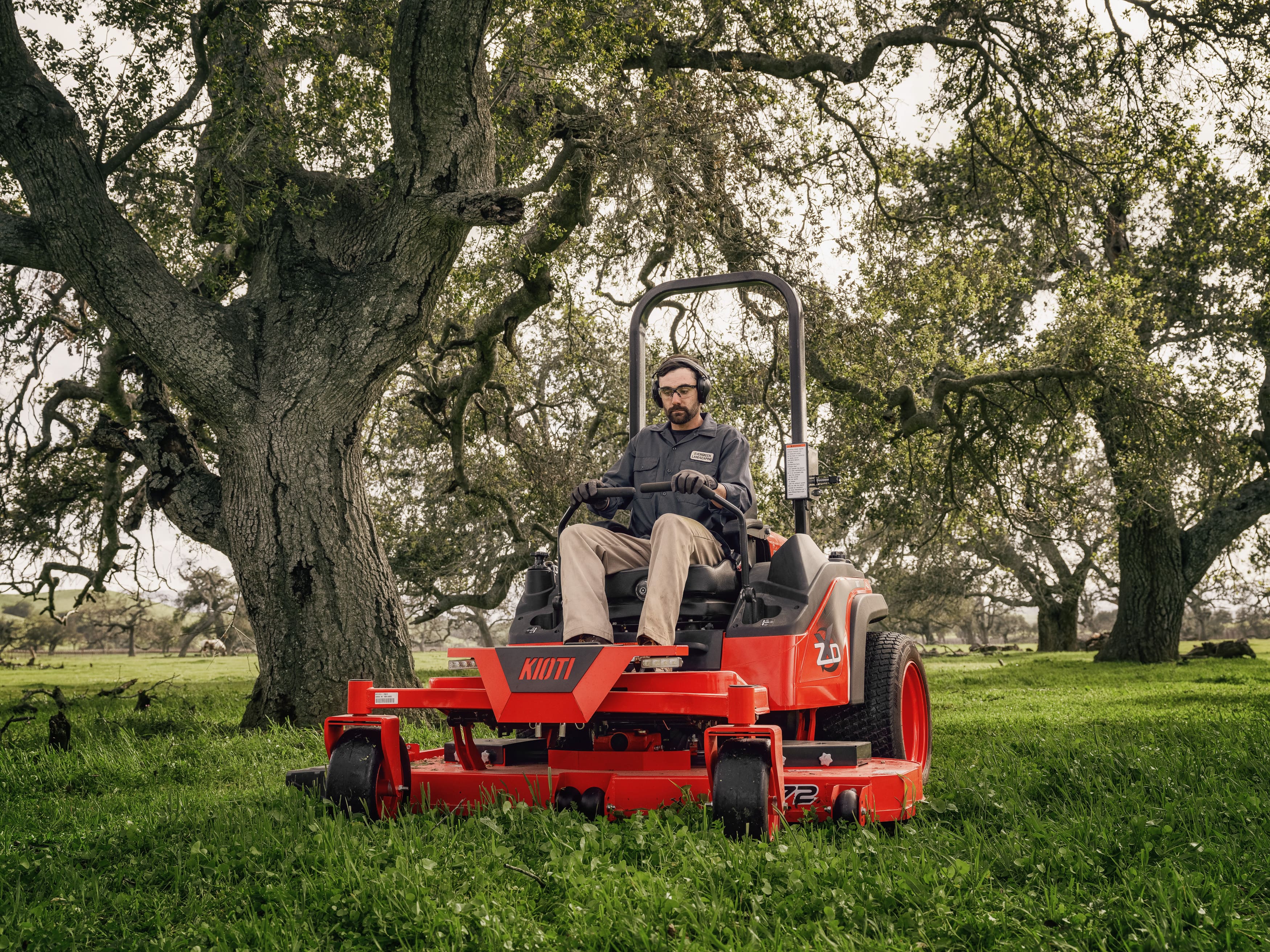

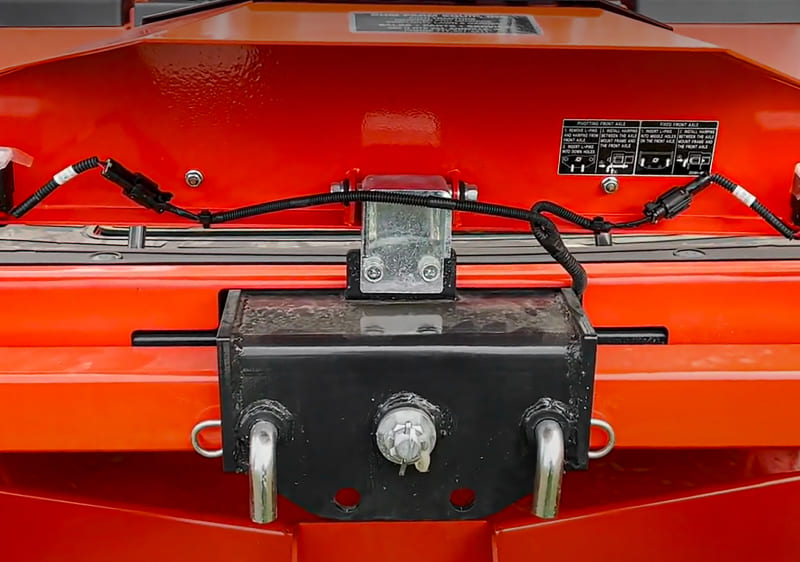

SWING AXLE
the ZXD has a swinging, lockable front axle. Together with the pneumatic rubber tires at the front, this means maximum driving comfort, even at higher speeds.
Highlight
Dominate mowing season with KIOTI’s powerhouse lineup of of the best zero turn mowers.
Specifications
Engine
Manufacturer | Briggs & Stratton | Briggs & Stratton | Briggs & Stratton | Briggs & Stratton | KAWASAKI | DAEDONG | DAEDONG |
---|---|---|---|---|---|---|---|
Fuel | Gasoline | Gasoline | Gasoline | Gasoline | Gasoline | Diesel | Diesel |
Engine Gross Power (ECE-R120) (HP) | 25 | 25 | 25 | 25 | 24 | 24.5 | 24.5 |
Rated revolution (RPM) | 3,600 | 3,600 | 3,600 | 3,600 | 3,600 | 3,200 | 3,200 |
Choke | Manual | Manual | Manual | Manual | Manual | - | - |
Engine Starting | Electric Start | Electric Start | Electric Start | Electric Start | Electric Start | Electric Start | Electric Start |
Total Displace (cc) | 724 | 724 | 724 | 724 | 726 | 1233 | 1233 |
Capacity
Fuel tank (ℓ) | 28.4 | 28.4 | 47.3 | 47.3 | 47.3 | 64.7 | 64.7 |
---|---|---|---|---|---|---|---|
Engine Oil US (ℓ) | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 3.7 | 3.7 |
TransAxle (ℓ) | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 12.9 | 12.9 |
PTO
PTO Torque (Nm) | 170 | 170 | 271 | 271 | 271 | - | - |
---|---|---|---|---|---|---|---|
PTO Clutch Type | Electric | Electric | Electric | Electric | Electric | Ind./wet disc | Ind./wet disc |
Drive Train
Transmission, Transaxle | 2 - HST / ZT-2800 | 2 - HST / ZT-2800 | 2 - HST / ZT-3400 | 2 - HST / ZT-3400 | 2 - HST / ZT-3400 | 2 - HST | 2 - HST |
---|
Traveling Speeds
Forward (km/h) | 14.5 | 14.5 | 16 | 16 | 16 | 17.7 | 17.7 |
---|---|---|---|---|---|---|---|
Reverse (km/h) | 6.4 | 6.4 | 7.2 | 7.2 | 7.2 | 11.4 | 11.4 |
Dimensions
Overall length (mm) | 2050 | 2050 | 2050 | 2050 | 2075.2 | 2258 | 2328 |
---|---|---|---|---|---|---|---|
Overall width (mm) | 1541.8 | 1709.4 | 1541.8 | 1709.4 | 1844 | 1902 | 2174.3 |
Tread width Front 4wd (mm) | 889 | 889 | 889 | 889 | 924.6 | 1064 | 1250 |
Tread width Rear (mm) | 1038.9 | 1038.9 | 1038.9 | 1038.9 | 1038.9 | 1210 | 1210 |
Overall height(with ROPS) (mm) | 1816 | 1816 | 1816 | 1816 | 1816 | 2092 | 2092 |
Wheel base in(mm) | 1231.9 | 1231.9 | 1231.9 | 1231.9 | 1257.3 | 1440 | 1510 |
Gross Vehicle Weight (kg) | 468.6 | 477.2 | 468.6 | 477.2 | 487.6 | 875 | 898.2 |
Dech Width (mm) | 1219.2 | 1371.6 | 1219.2 | 1371.6 | 1524 | 1550 | 1829 |
Cutting Height (mm) | 3.8 ~ 12.7 | 3.8 ~ 12.7 | 3.8 ~ 12.7 | 3.8 ~ 12.7 | 3.8 ~ 12.7 | 3.8 ~ 12.7 | 3.8 ~ 12.7 |
No. of blade | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Tire Size - Front | 13 x 5 - 6 | 13 x 5 - 6 | 13 x 6.5 - 6 | 13 x 6.5 - 6 | 13 x 6.5 - 6 | 15 x 6.5 - 8 | 15 x 6.5 - 8 |
Tire Size - Rear | 22 x 9.5-10 | 22 x 9.5-10 | 23 x 9.5 - 12 | 23 x 10.5 - 12 | 23 x 10.5 - 12 | 26 x 12.0-16 | 26 x 12.0-16 |
Passenger Compartment

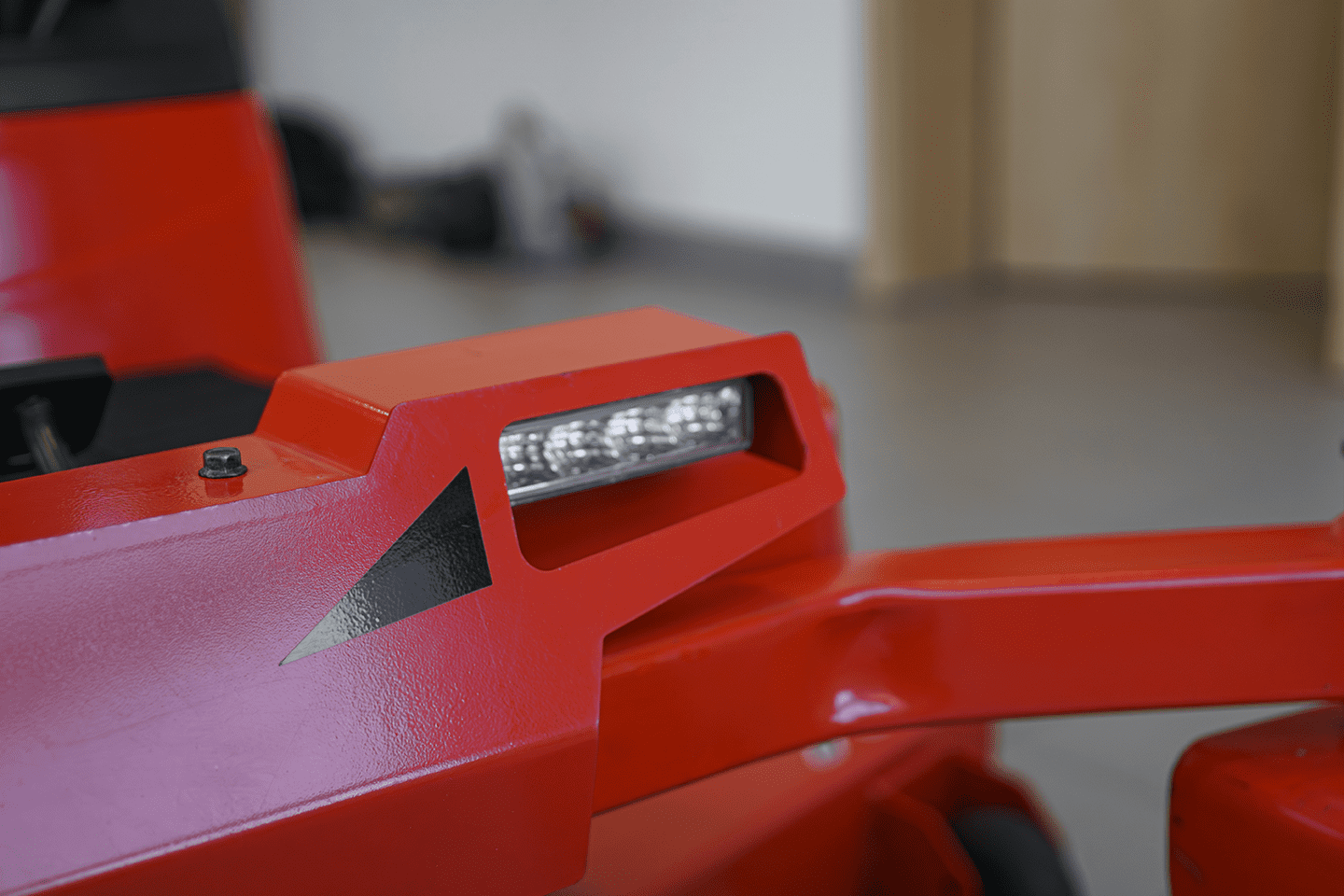

Headlight | Opt. | Opt. | Std. | Std. | Std. | Std. | Std. |
---|---|---|---|---|---|---|---|
Seat - Suspension | Regular | Regular | 3 inch suspension | 3 inch suspension | 3 inch suspension | 3 inch suspension | 3 inch suspension |
Seat - Seat belt | Std. | Std. | Std. | Std. | Std. | Std. | Std. |
