The Vehicle for Any Terrain - with a High Fun Factor
Overview
Click the button to find out the characteristics
of each point of the products
-

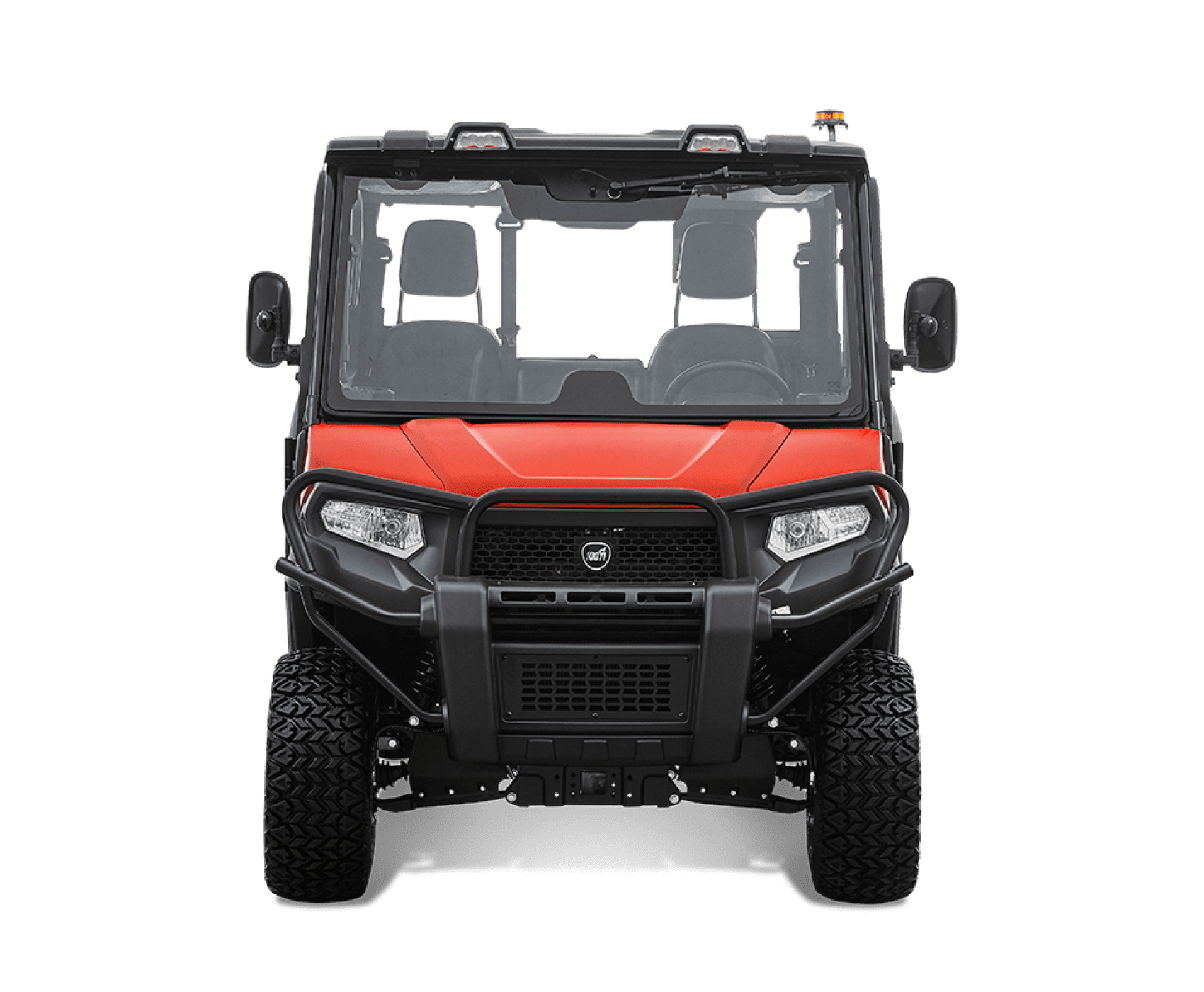

Front
-
Corner
-

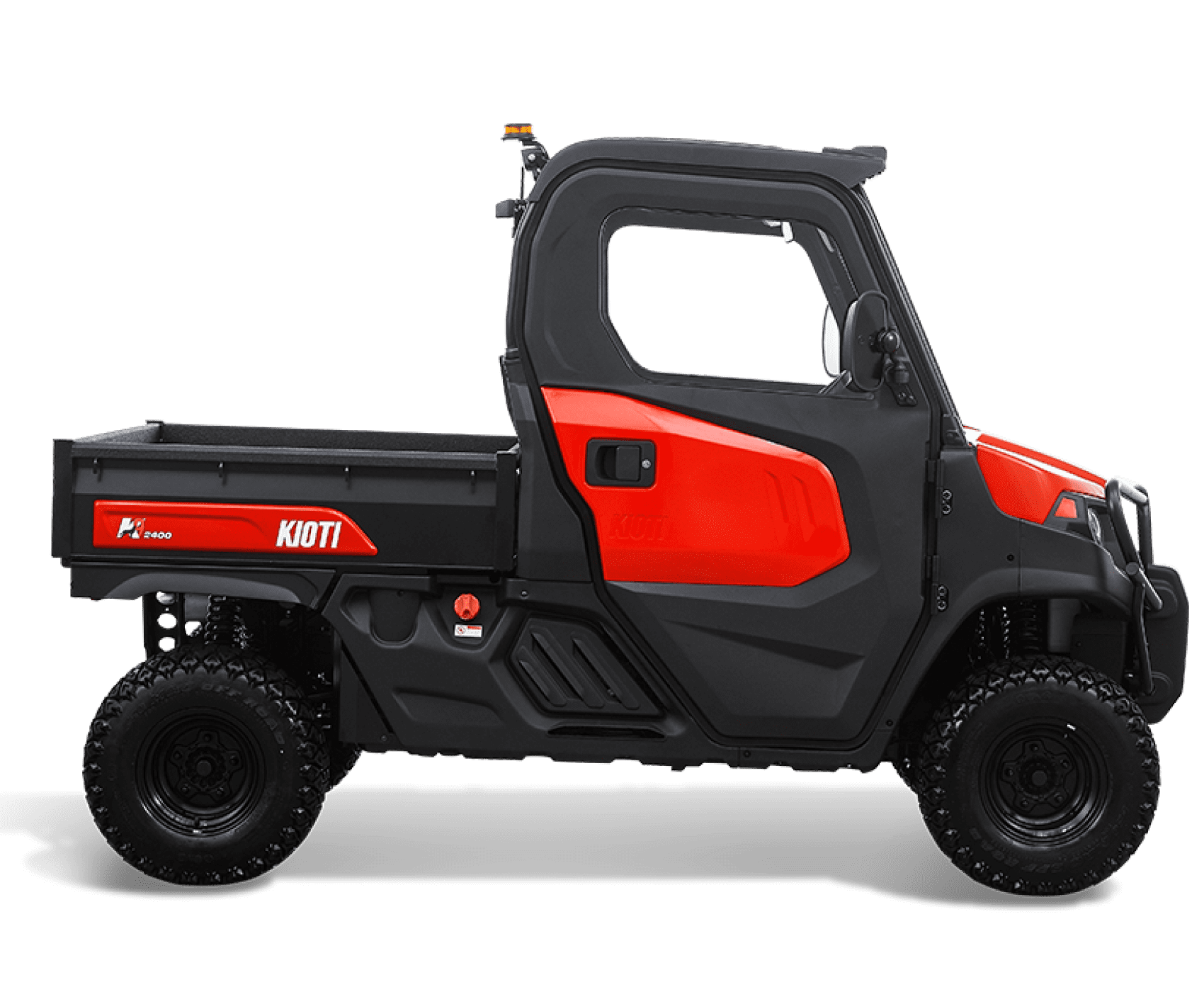

Side
-
Interior

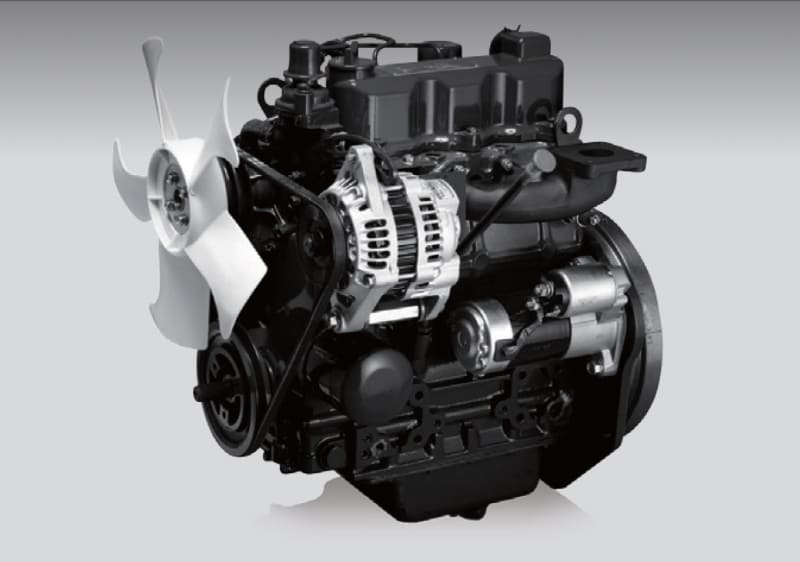

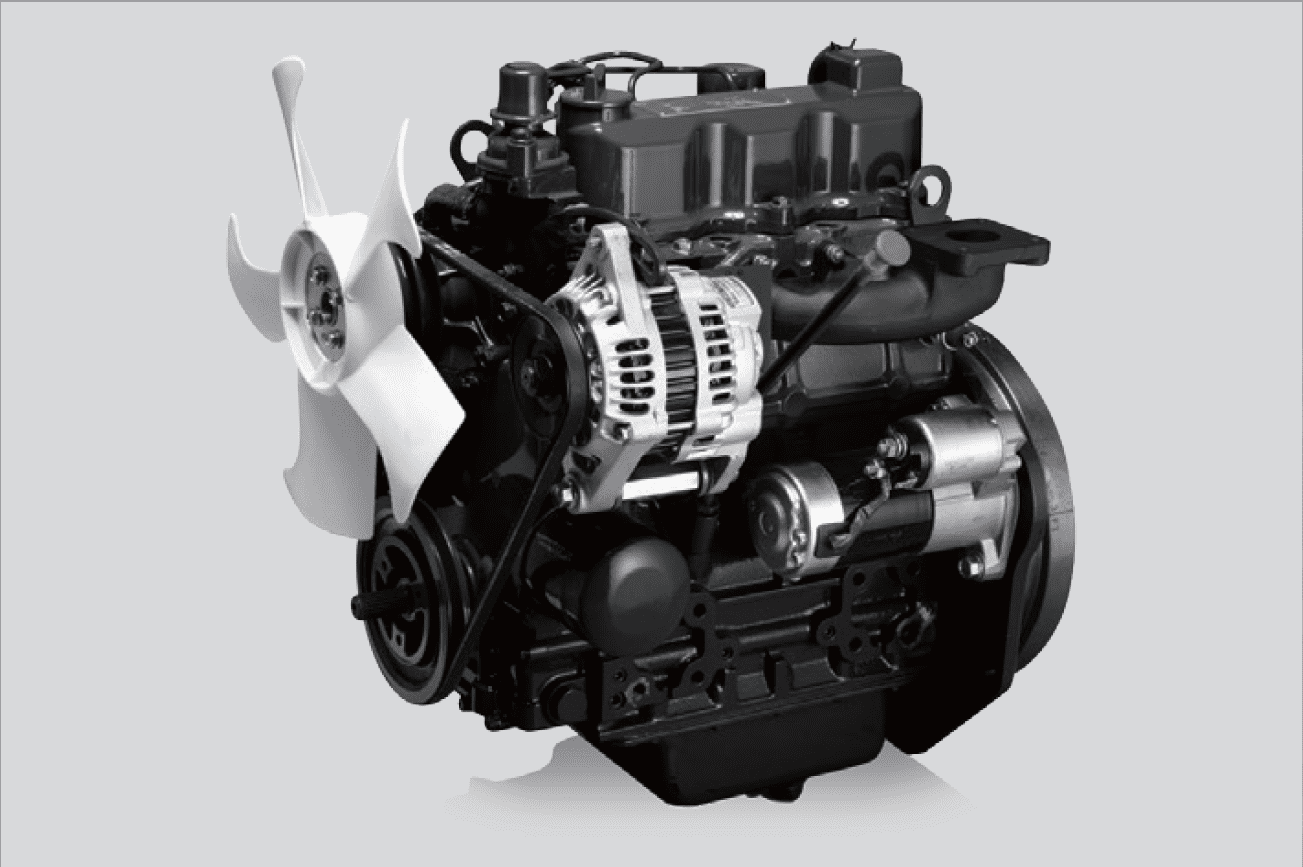

KIOTI DIESEL ENGINE
The 25 HP Stage V diesel engine runs smoothly and efficiently. The K9 2400C has an engine brake via the CVT drive.

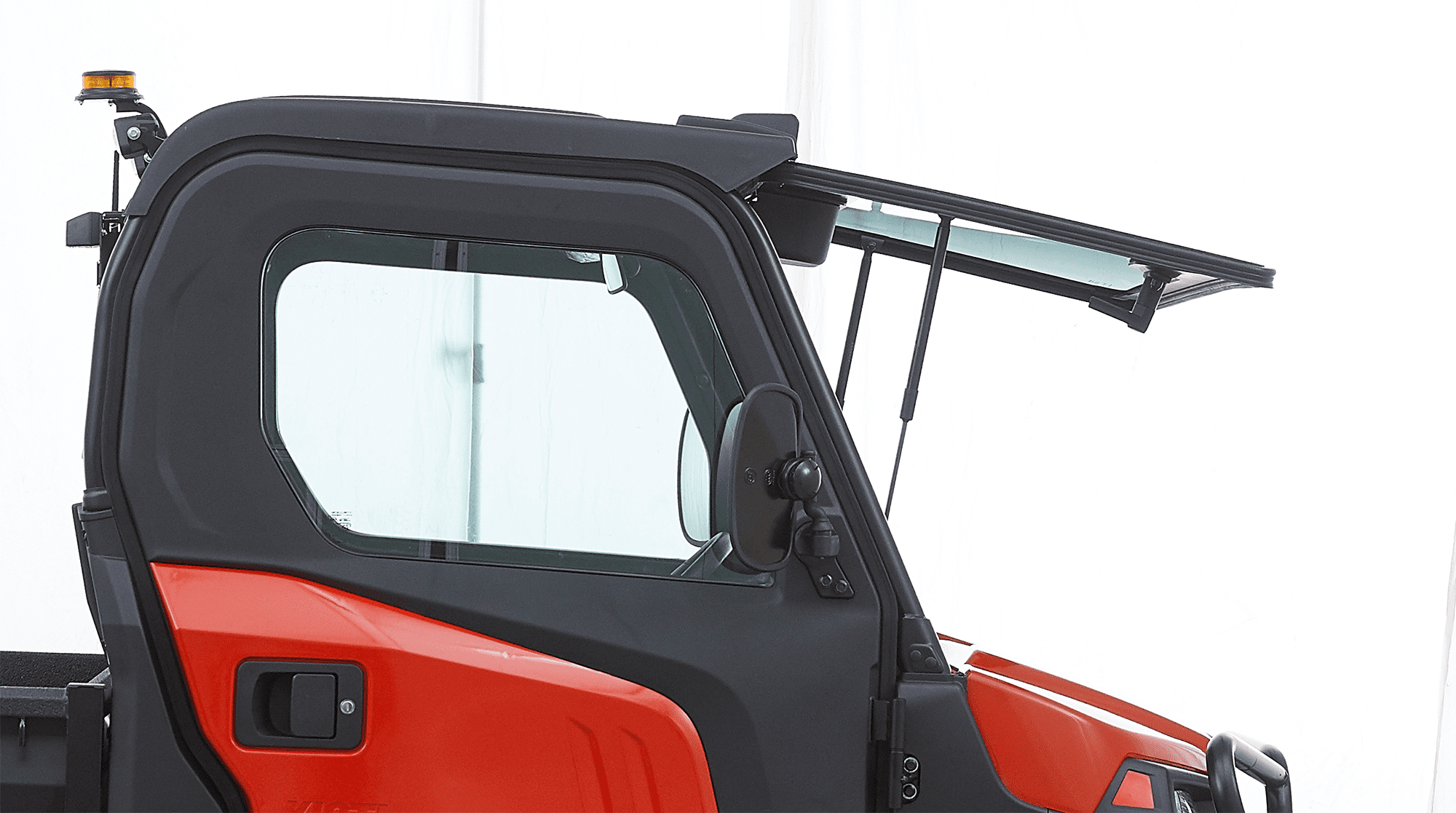

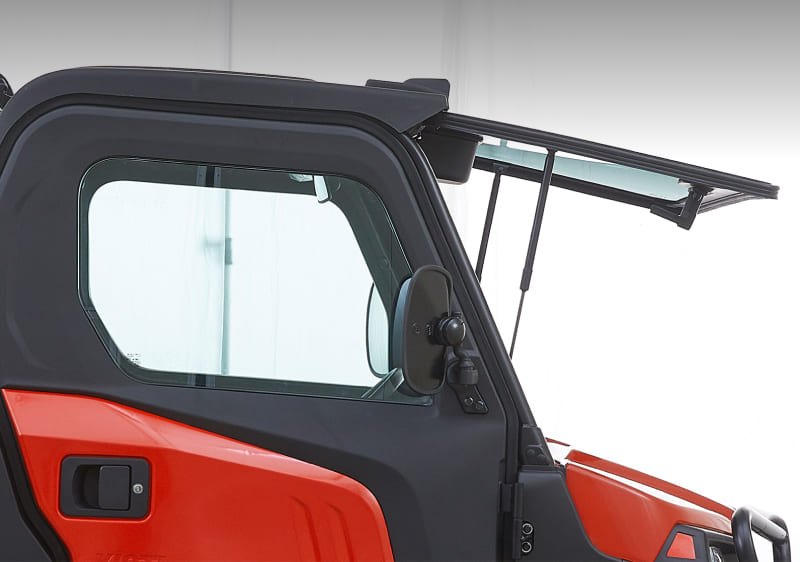

WINDSHIELD AND WINDSHIELD WIPERS
A windshield and windshield wipers are optionally available for the K9 to protect the driver from the wind and weather.

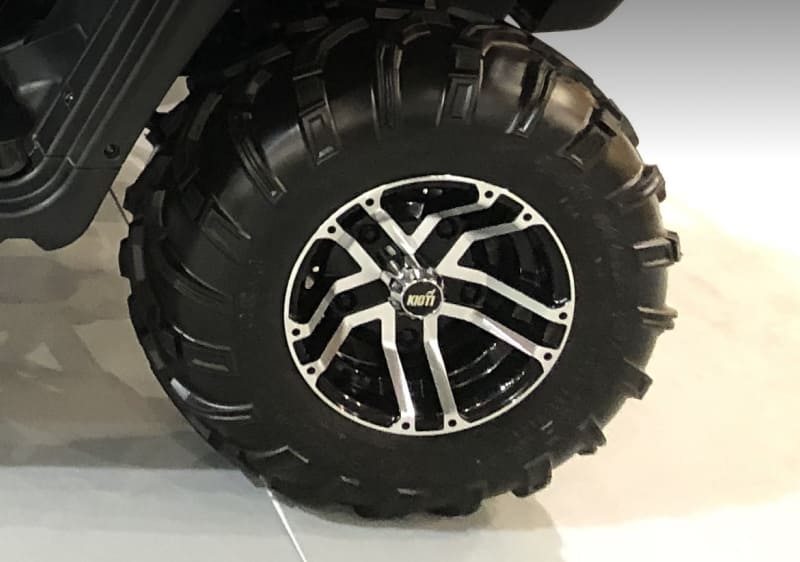

TIRES
The heavy-duty tires are suitable for any application, while the coarse-tread tires are used where additional traction is required.

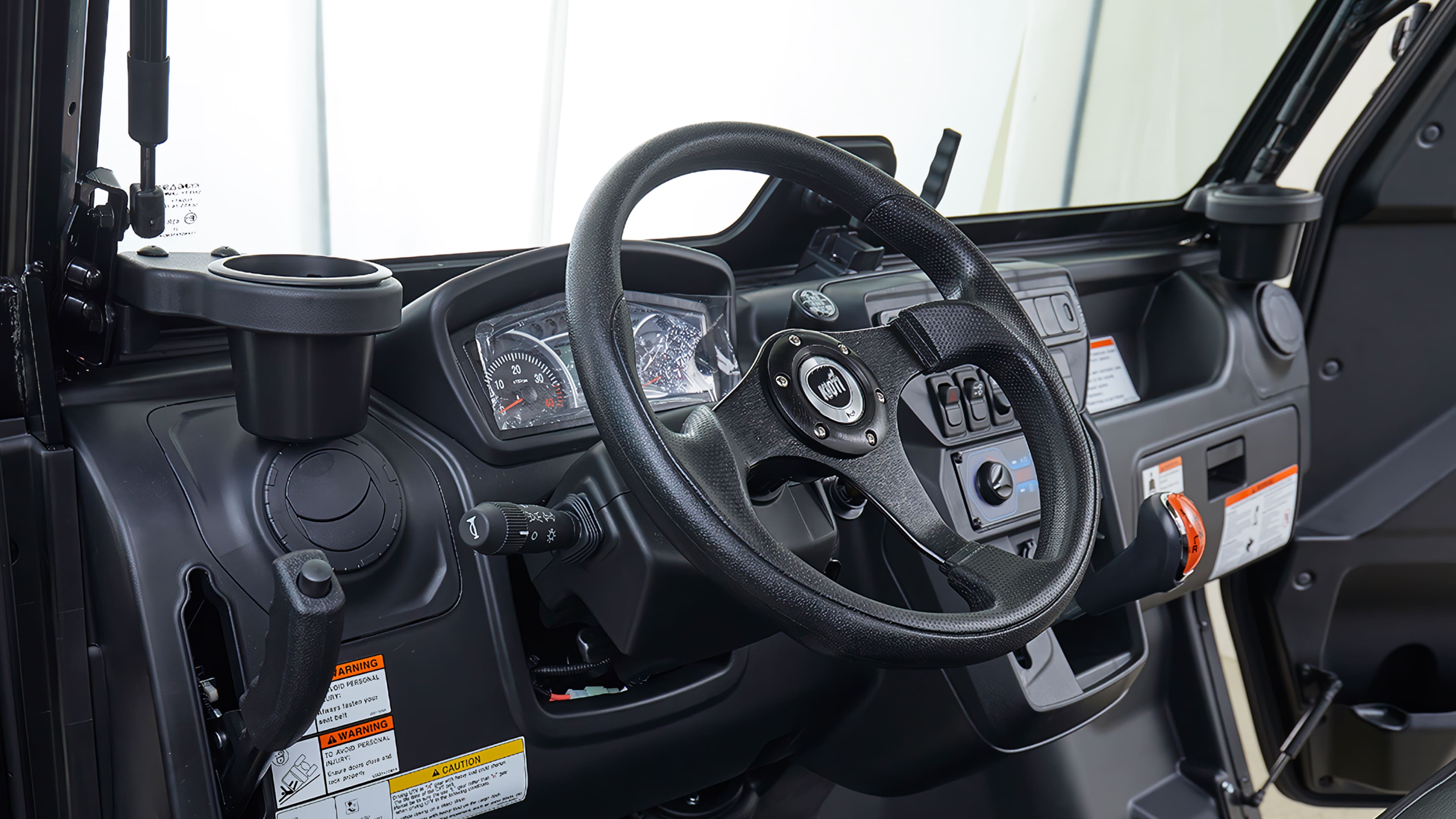

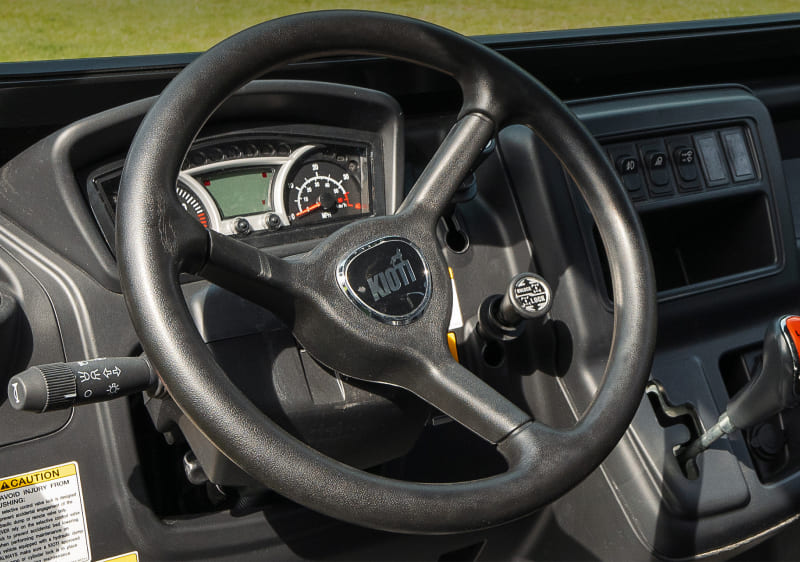

ADJUSTABLE STEERING WHEEL
The steering wheel is easy to swivel and the controls give the K9 an automotive character.

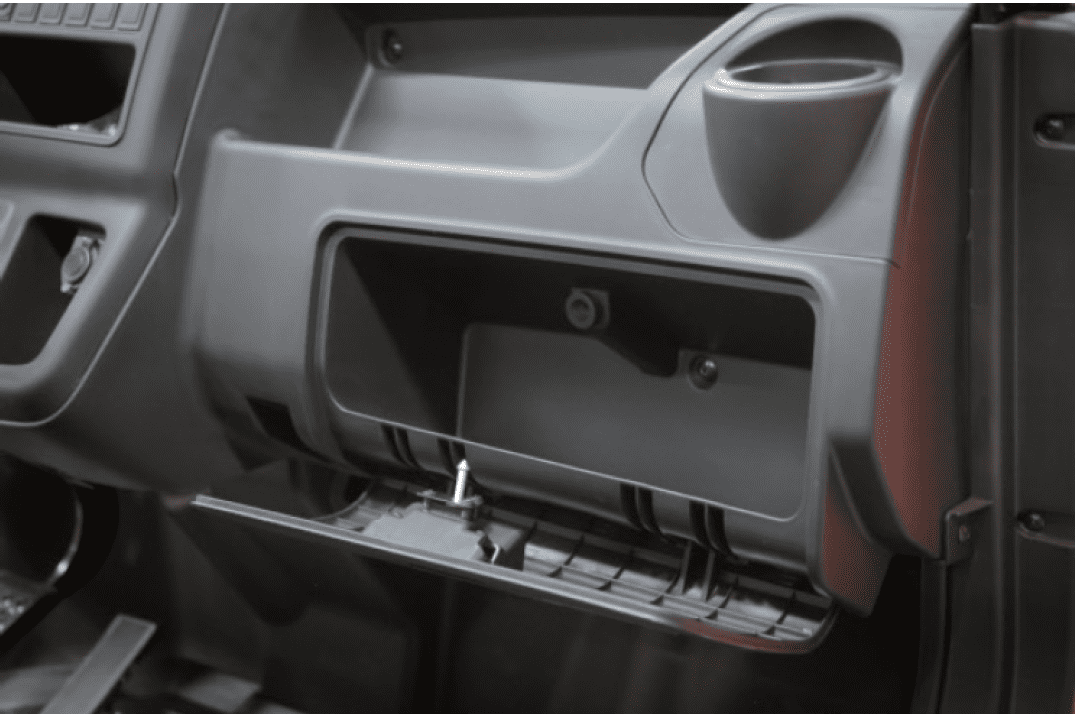

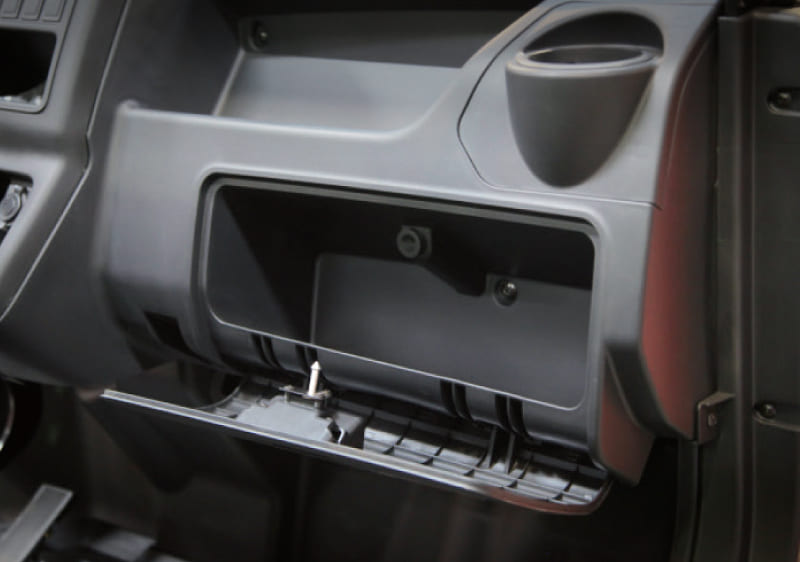

STORAGE AREAS
Always useful: more than sufficient storage and stowage space.
Highlight

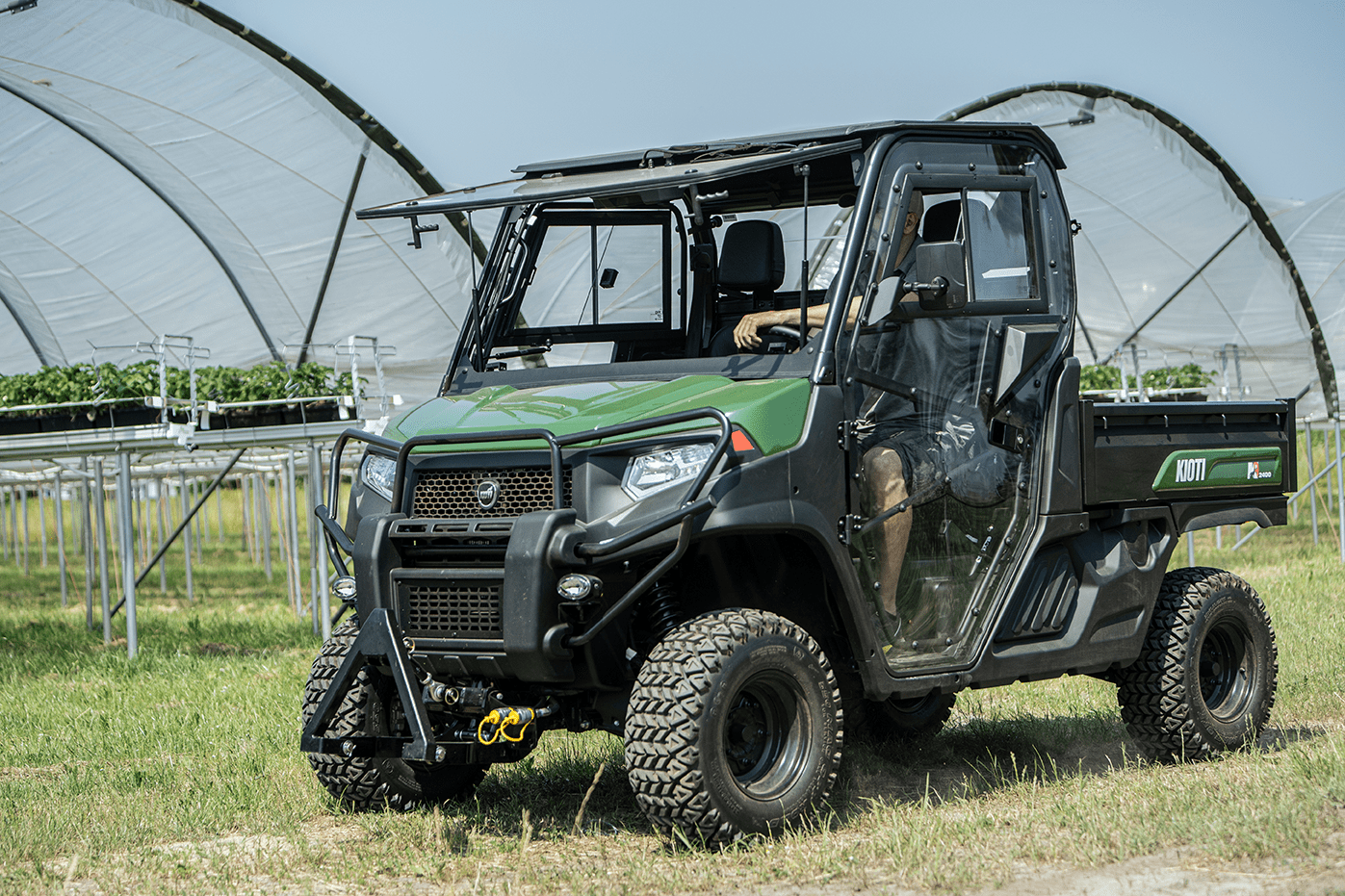

A tough, reliable workhorse.
The KIOTI K9 utility vehicles are workhorse that can pull, tow, haul with ease. Not to mention easy to operate.

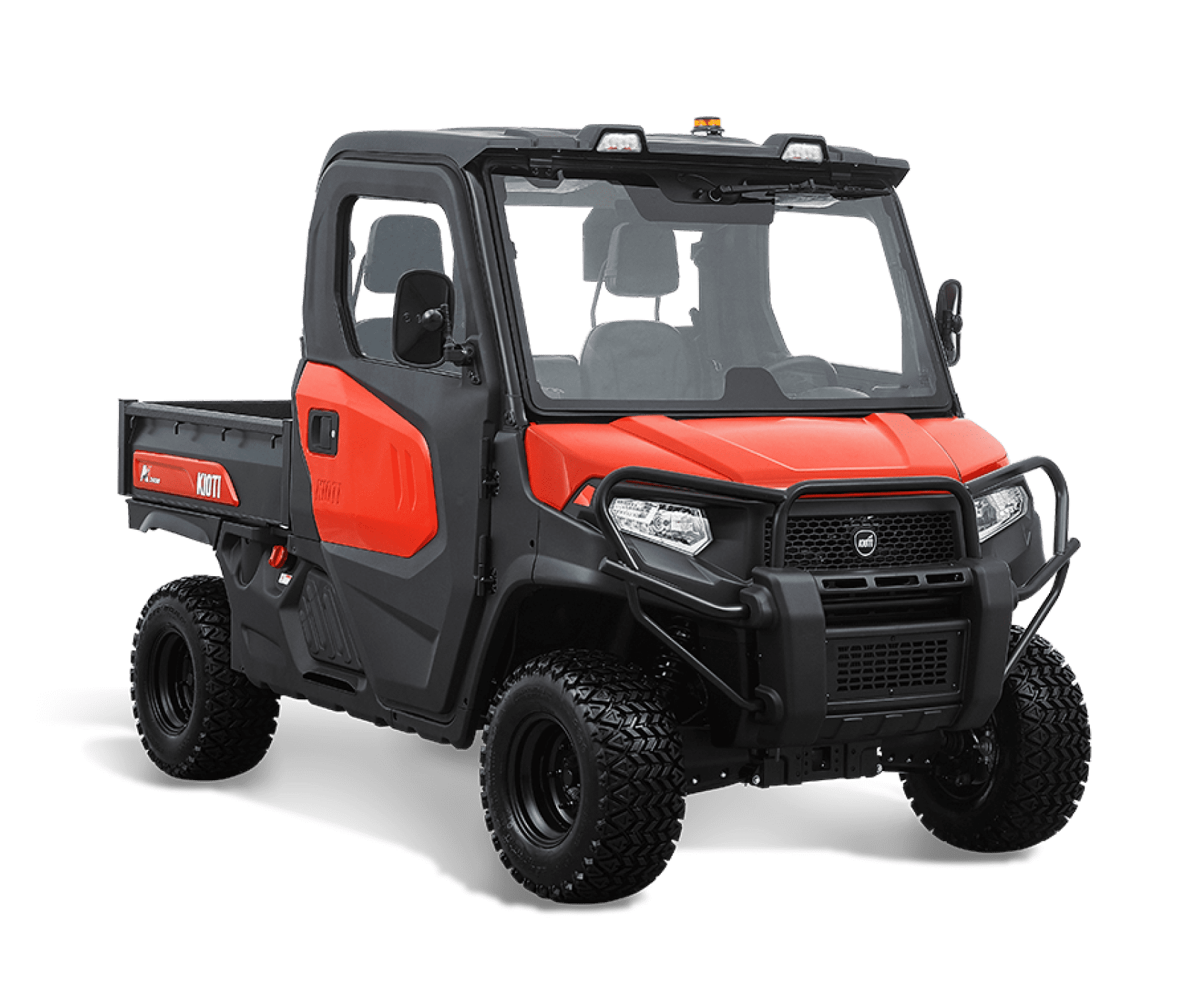

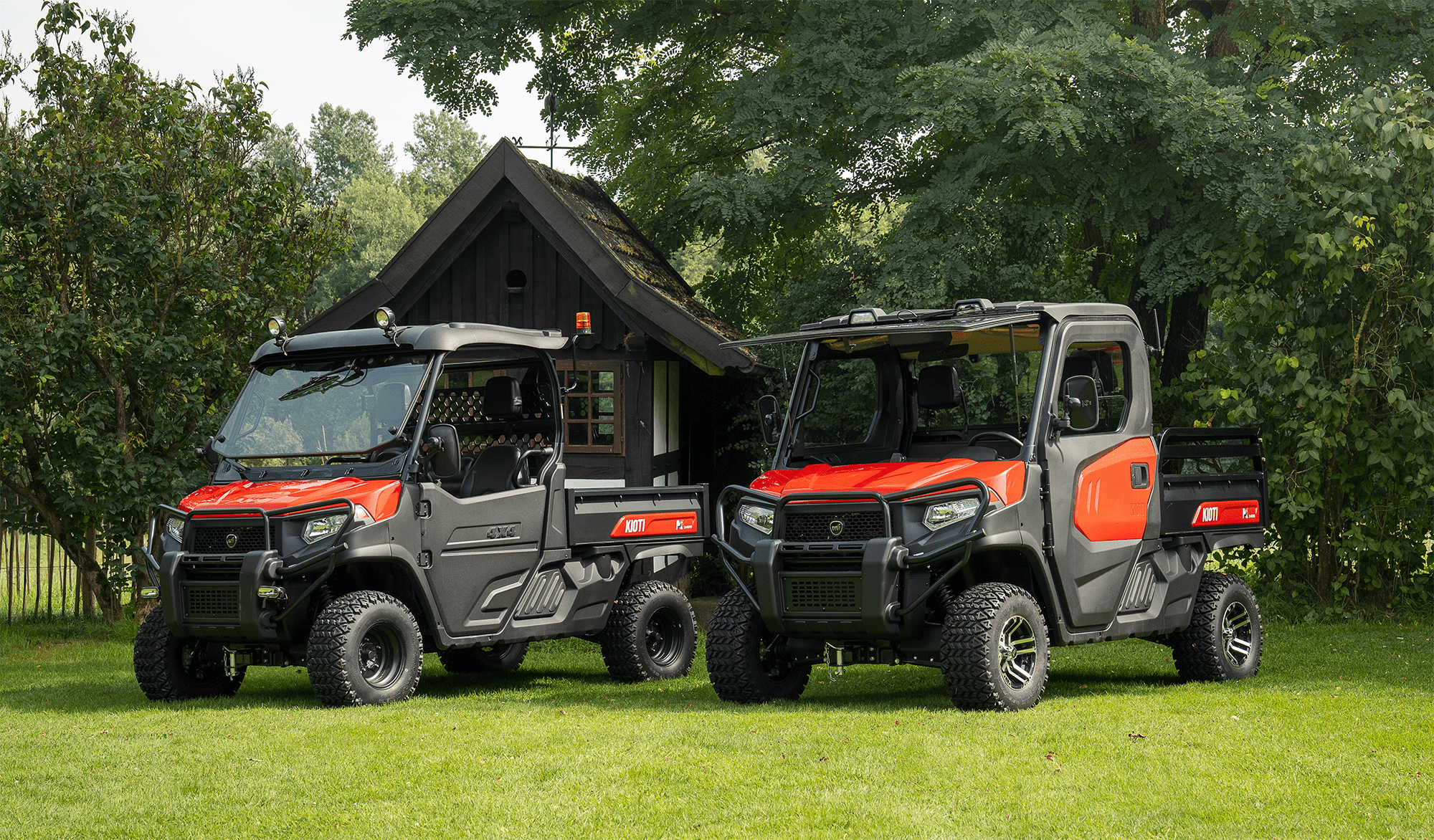

KIOTI K9 Utility Vehicle
-

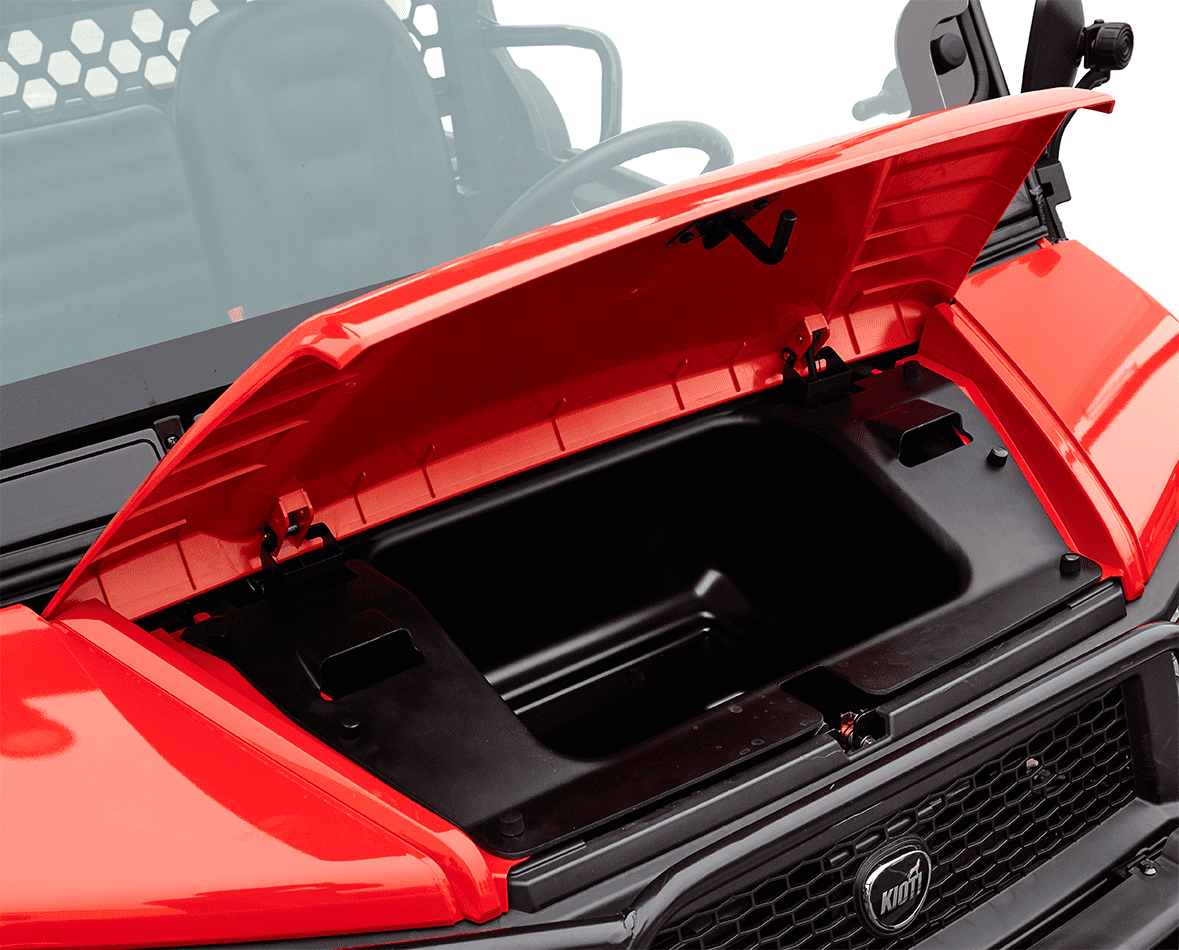

STORAGE COMPARTMENT
For the ROPS variant, a storage compartment under the front hood is optionally available.
-

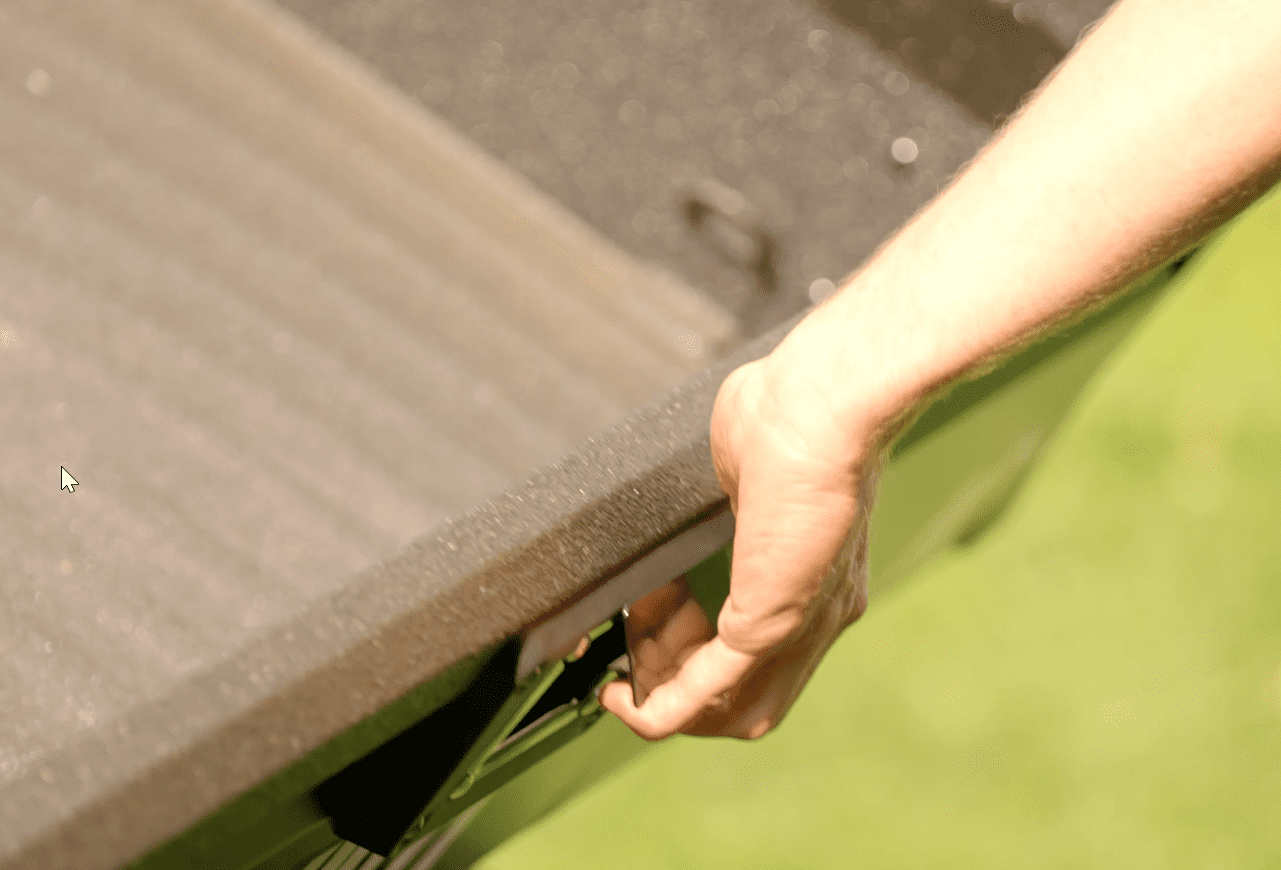

ONE-HANDED OPERATION
The tailgate can be opened easily and quickly using one-handed operation. The opened tailgate also serves as an extension of the loading area.
-
KIOTI DIESEL ENGINE
The 25 hp Stage V diesel engine from KIOTI is powerful and efficient. The K9-2410 has an engine brake via the CVT drive.
-
STORAGE AREAS
Always useful: more than sufficient storage and stowage space.
-

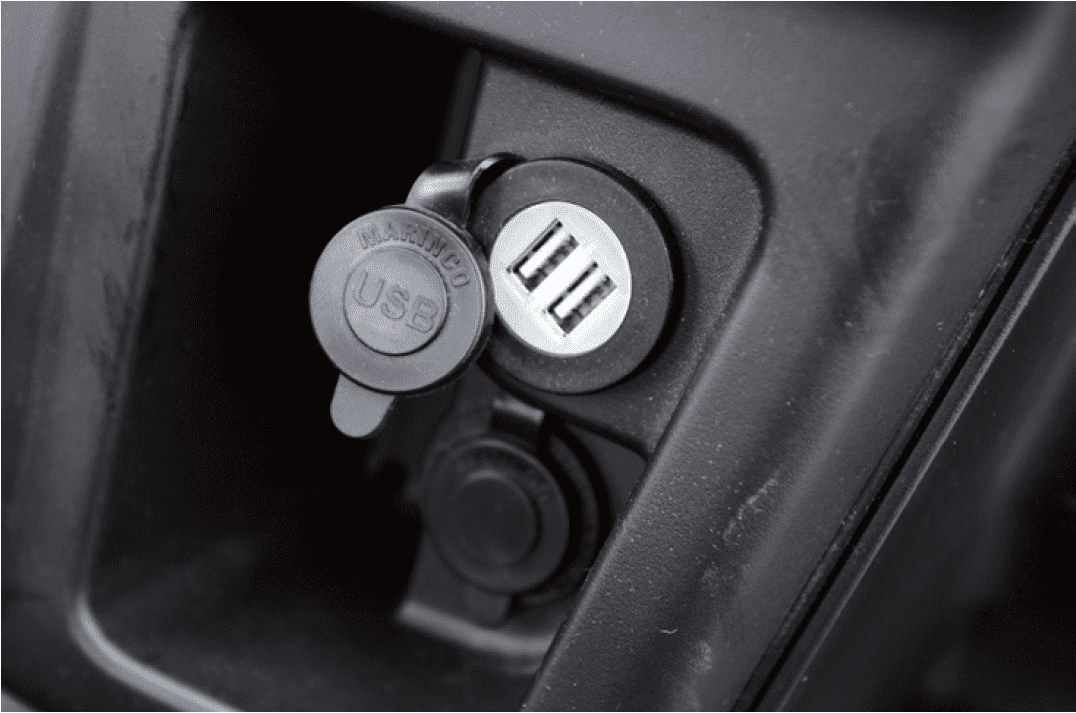

12V AND USB CONNECTIONS
Thanks to the 12V and USB ports, various devices can be conveniently charged while driving.
-

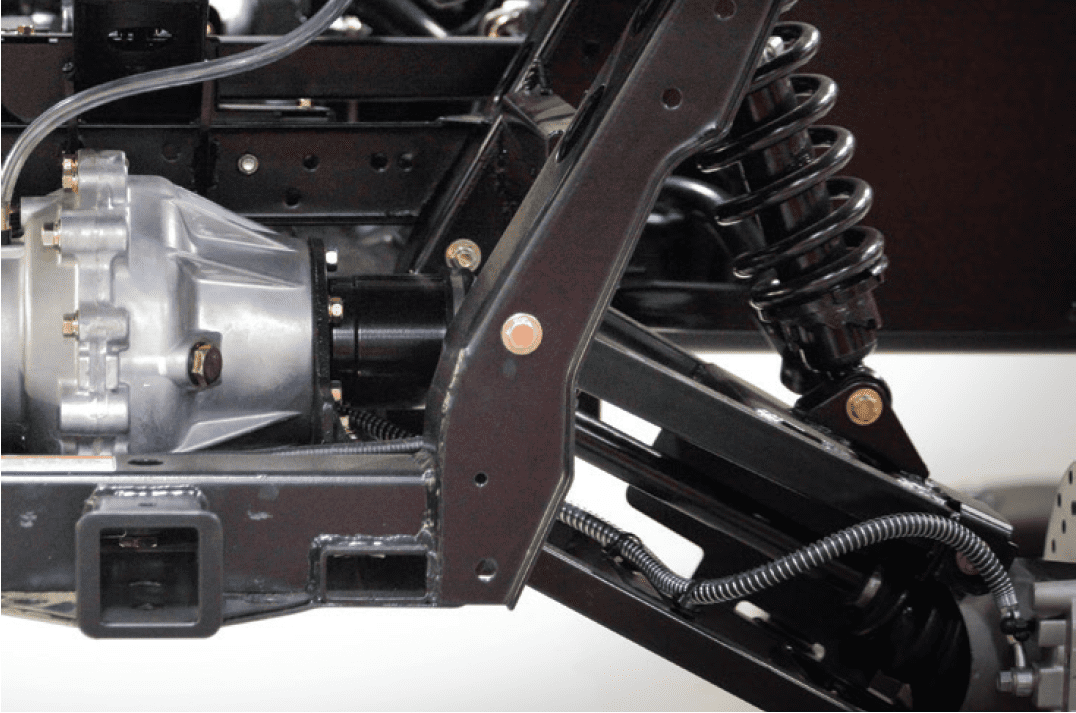

INDIVIDUAL WHEEL SUSPENSION
Both the front and rear wheels are individually suspended via robust double wishbones, ensuring a comfortable ride on all terrain.
-

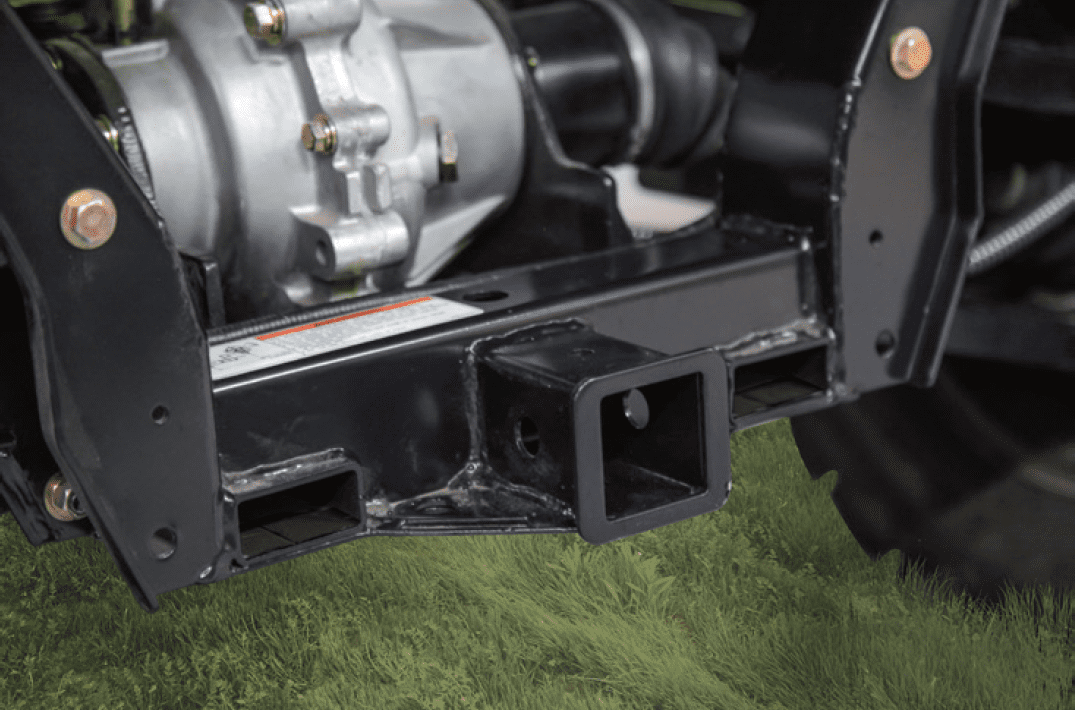

HITCH
The K9 comes standard with a hitch at the front and a drawbar at the rear. A StVZO-compliant 50 mm ball head is available for the rear insert.
-

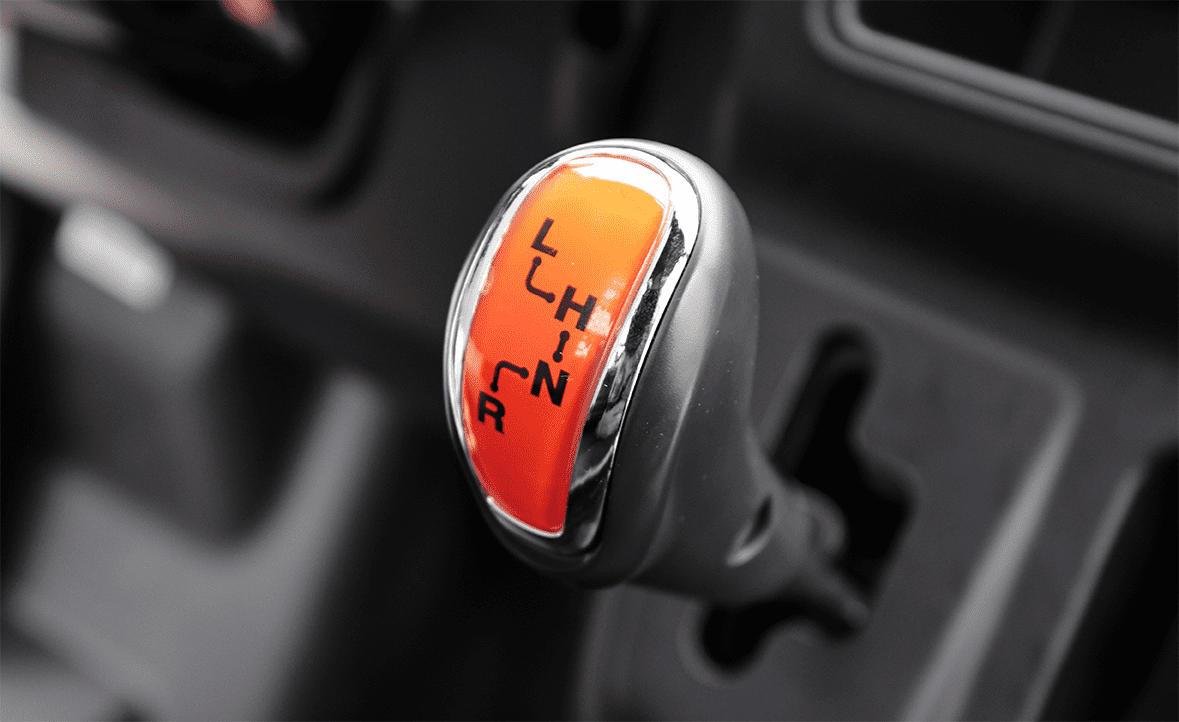

CVT DRIVE
The intuitive and robust two-stage CVT drive accelerates the K9 to 50 km/h or optionally 40 km/h.
-

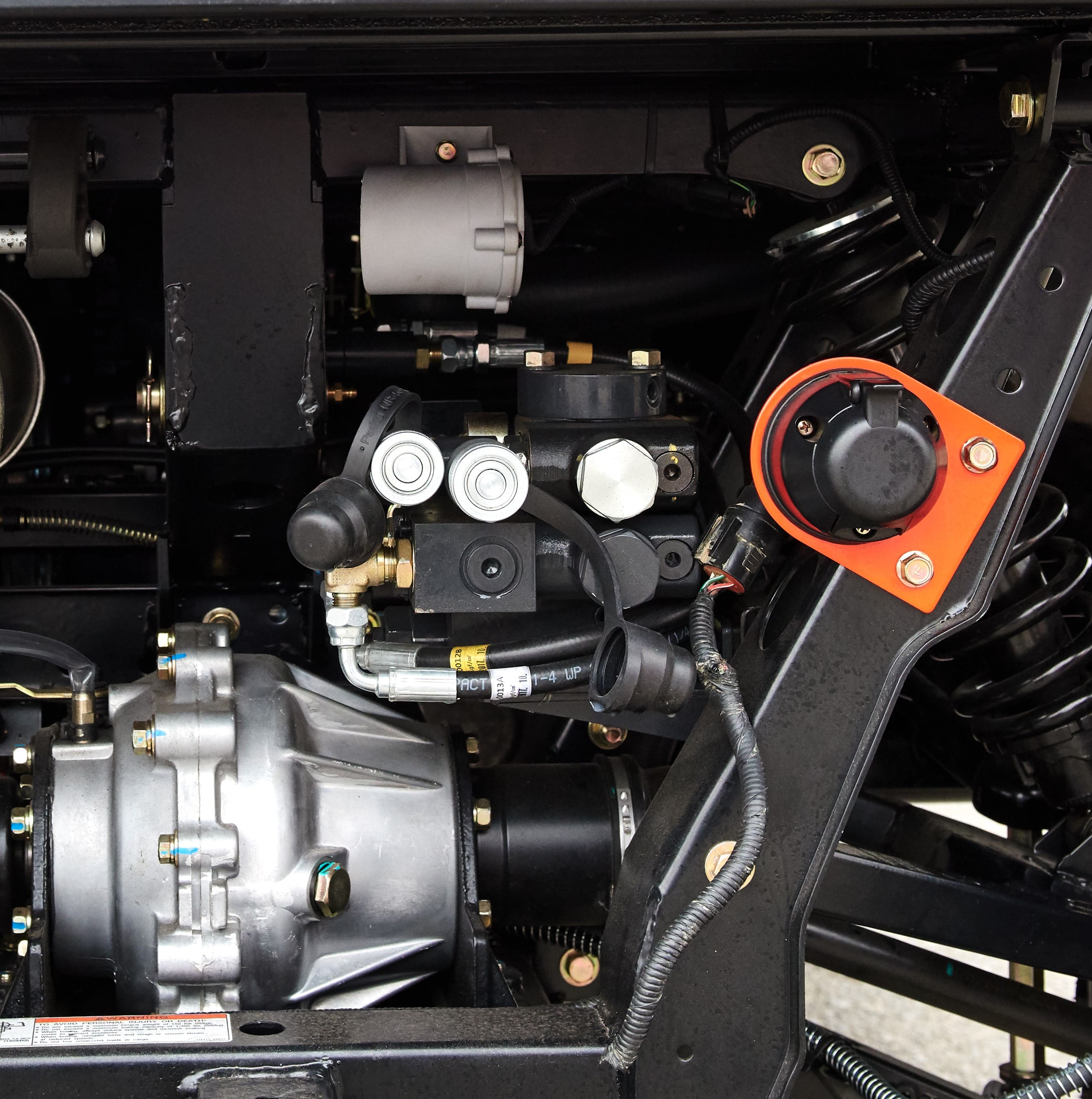

HYDRAULIC SYSTEM
The optionally available on-board hydraulics make it possible to operate external attachments and tilt the loading area.
-
WINDSHIELD AND WINDSHIELD WIPERS
A windshield and windshield wipers are optionally available for the K9 to protect the driver from the wind and weather.
Don't take our word for it.
Read for yourself what others are saying about their KIOTI.
We are active in gardening and landscaping and have expanded our fleet with a K9 from KIOTI, which is mainly used in our tree nursery. We bring out perennials, transport materials, and use the K9 extensively for internal transportation. The hydraulically tiltable loading area is great, and the K9 UTV trailer, which we call “Flitzer,” pulls without any problems and makes our work much easier. I also like to use the Flitzer regularly in my private life: I use it to take the children to kindergarten, for short family outings in rough terrain, and to transport 240 kg tons of vegetable waste to feed our Bentheim pigs. Being able to fall back on such a reliable and maneuverable utility vehicle is great, as the areas of application are very diverse.
Bernhard Zurhake, Zurhake Garten & Gestaltung, VisbekGallery
Specifications
- Model
Engine
| Model | 3C100LFU-D3 | 3C100LFU-D3 |
|---|---|---|
| Engine Gross Power (ECE-R120) (HP) | 24.5 | 24.5 |
| Displacement cu.in.(cc) | 61.45(1,007) | 61.45(1,007) |
| Rated revolution (RPM) | 3,200 | 3,200 |
Capacity
| Fuel tank (ℓ) | 37 | 37 |
|---|
Suspension
| Front suspension | Independent, Double A-Arm(Wishbone type) | Independent, Double A-Arm(Wishbone type) |
|---|---|---|
| Wheel Travel(FRT) - Total (mm) | 130 | 130 |
| Wheel Travel(FRT) - Bump (mm) | 35 | 35 |
| Wheel Travel(FRT) - Rebound (mm) | 95 | 95 |
| Rear Suspension | Independent, Double A-Arm(Wishbone type) | Independent, Double A-Arm(Wishbone type) |
| Wheel Travel (RR) - Total (mm) | 160 | 160 |
| Wheel Travel (RR) - Bump (mm) | 70 | 70 |
| Wheel Travel (RR) - Rebound (mm) | 90 | 90 |
Drive Train
| Type | Belt CVT | Belt CVT |
|---|---|---|
| Gear groups | L-H-N-R | L-H-N-R |
| Maximum speed (forward) (km/h) | 50 | 50 |
| Brake | Front/Rear Hyd Dry Caliper Disc | Front/Rear Hyd Dry Caliper Disc |
Steering
| Type | Rack & Pinion/Electronic Power Steering | Rack & Pinion/Electronic Power Steering |
|---|
Dimensions
| Overall length (mm) | 3,045 | 3,045 |
|---|---|---|
| Overall width (mm) | 1,640 | 1,640 |
| Height (mm) | 1,990 | 1,990 |
| Max Wheel Tread - Front (mm) | 1,320 | 1,320 |
| Max Wheel Tread - Rear (mm) | 1,320 | 1,320 |
| Wheel base in. (mm) | 2,180 | 2,180 |
| Weight - Total (CVW) (kg) | 1,050 | 1,050 |
| Weight - Total (GVW) (kg) | 1,800 | 1,800 |
| Weight - Total (GVWR) (kg) | 1,700 | 1,700 |
| Ground Clearence in. (mm) | 265 | 265 |
| Towing Capacity (kg) | 900 | 900 |
| Turning Radius (m) | 4.6 [2WD] | 4.6 [2WD] |
| Cargo Bed - Length x Width x Depth (mm) | 1,110 x 1,480 x 293 | 1,110 x 1,480 x 293 |
| Cargo Bed - Cargo Capacity (kg) | 500 | 500 |
Tire Size
| Front - Work | 25x10-12 | 25x10-12 |
|---|---|---|
| Front - Turf | 25x10-12 | 25x10-12 |
| Front - ATV | 25x10-12 | 25x10-12 |
| Rear - Work | 25x10-12 | 25x10-12 |
| Rear - Turf | 25x10-12 | 25x10-12 |
| Rear - ATV | 25x10-12 | 25x10-12 |
Passenger Compartment
| Speedometer | Std. | Std. |
|---|---|---|
| Front Guard | Std. (with HeadLamp Protect) | Std. (with HeadLamp Protect) |
| USB Port and Power Socket | Std. | Std. |
| Engine Break | Std. | Std. |
| Swing Drawbar | Std. | Std. |
| Front Hitch Receiver Kit (EEC) | Std. | Std. |
| Hood Duxt Cover | Std. | Std. |
| Suspension Dust Guard | Std. | Std. |
| Floor Mat | Std. | Std. |
| Sunvisor | Std. | Std. |
| Side Mirror | Std. | Std. |
| Room Mirror | Std. | Std. |
| Headrest | Std. | Std. |
| License Plate | Std. | Std. |
| Parking Brake Buzzer | Std. | Std. |
| Working Lamp - Front | Std. | Std. |
| 7Pin Socket | Std. | Std. |
| Sports Handle (KIOTI) | Std. | Std. |
