Compact Tractor with High Utility Value
Overview
Click the button to find out the characteristics
of each point of the products
-

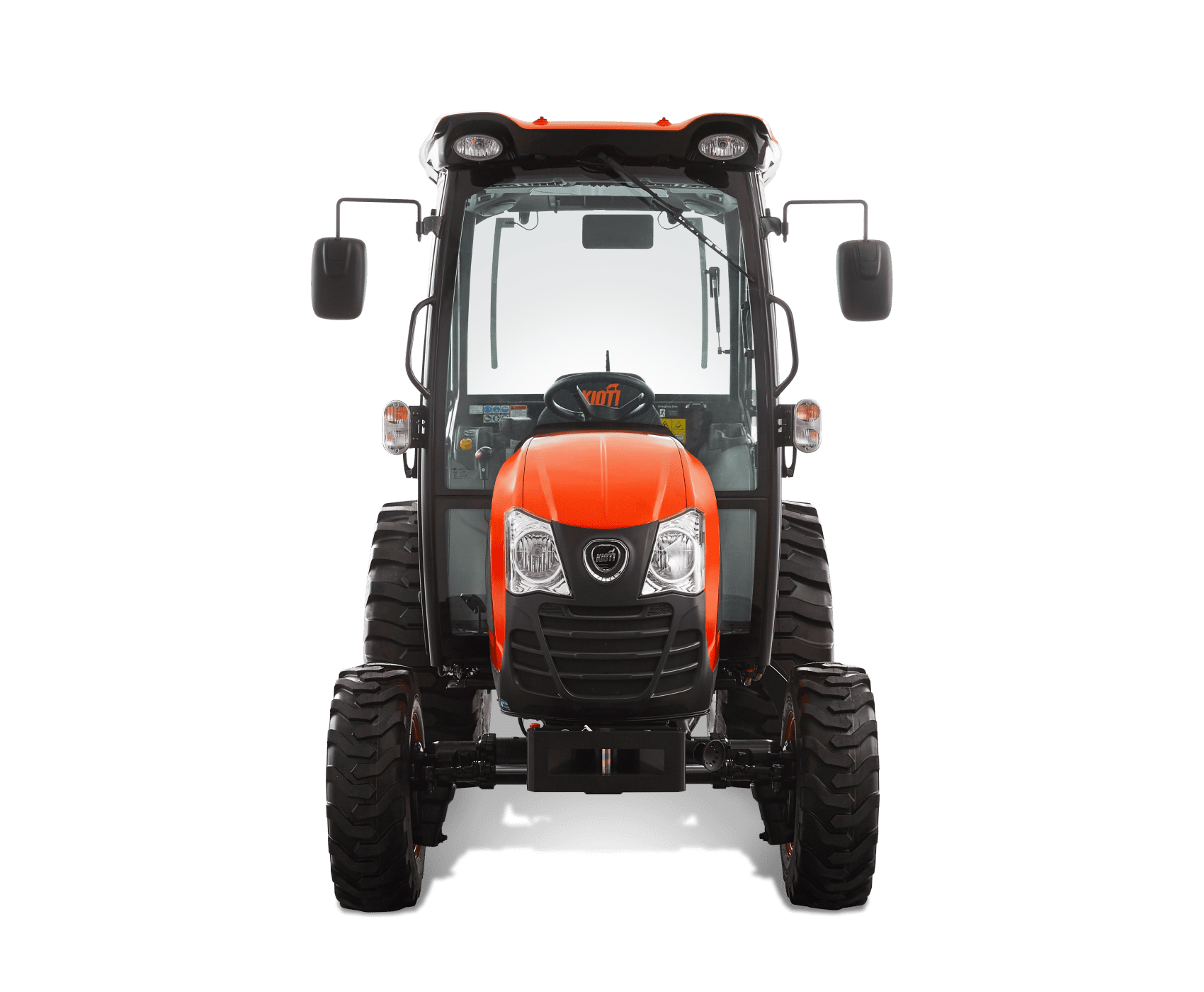

Front
-
Corner
-
Side
-

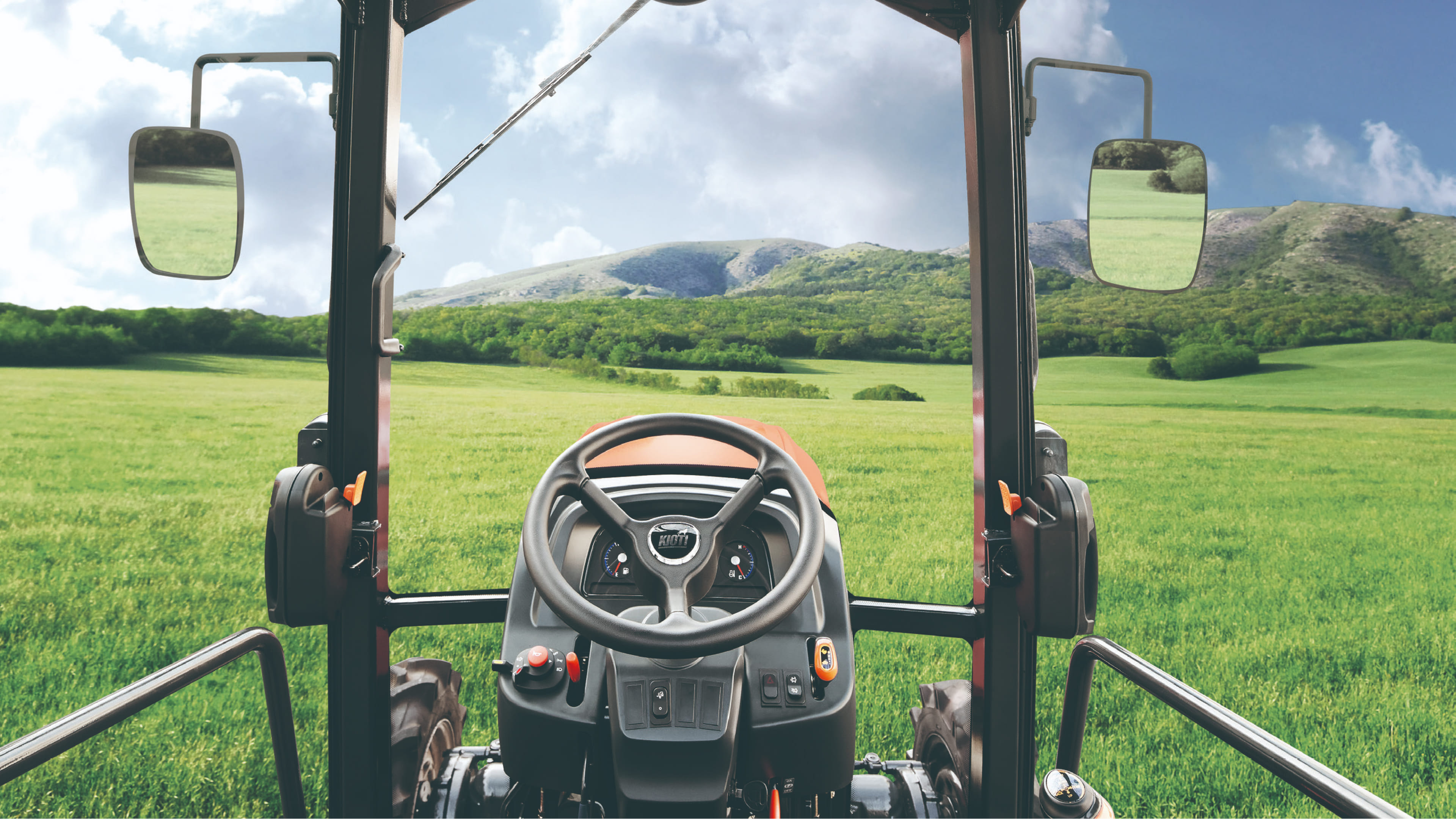

Interior

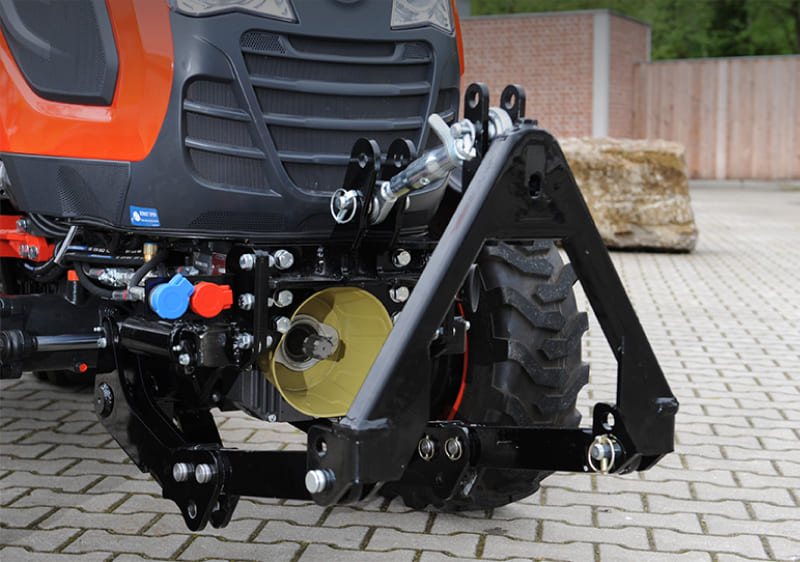

FRONT LINKAGE & PTO (MAT EV)
The front linkage and the engine-driven front PTO for the CK30 models allow the flexible attachment and driving with front-mounted implements.

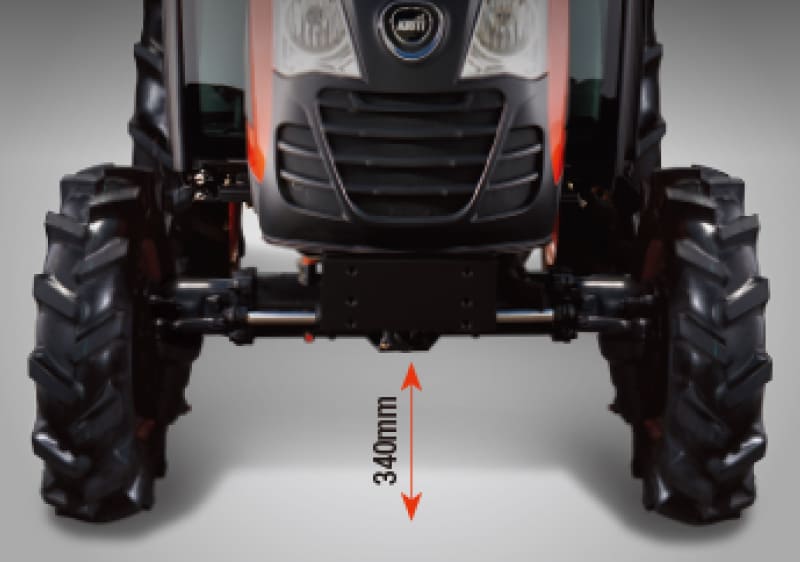

PORTAL AXLE
The fully encapsulated, low-main tenance portal axle ensures high ground clearance and a tight turning radius. It is also low-main tenance and has low wear.

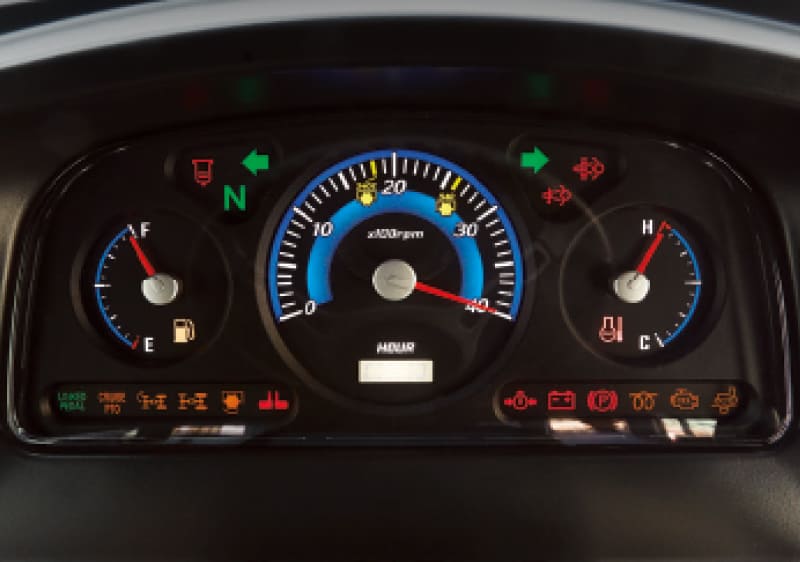

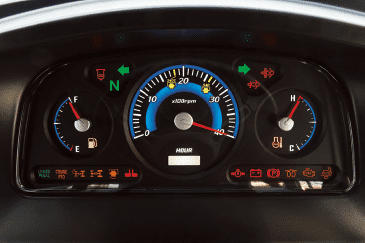

ILLUMINATED GAUGES
The illuminated displays are easy to read both in bright daylight and at night.

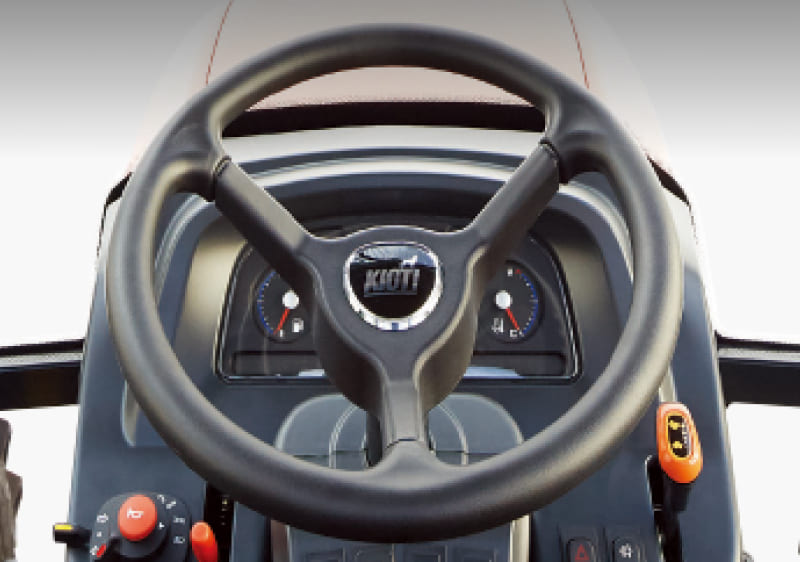

ADJUSTABLE STEERING WHEEL
All models in the CK series have a pivoting steering column.
Highlight

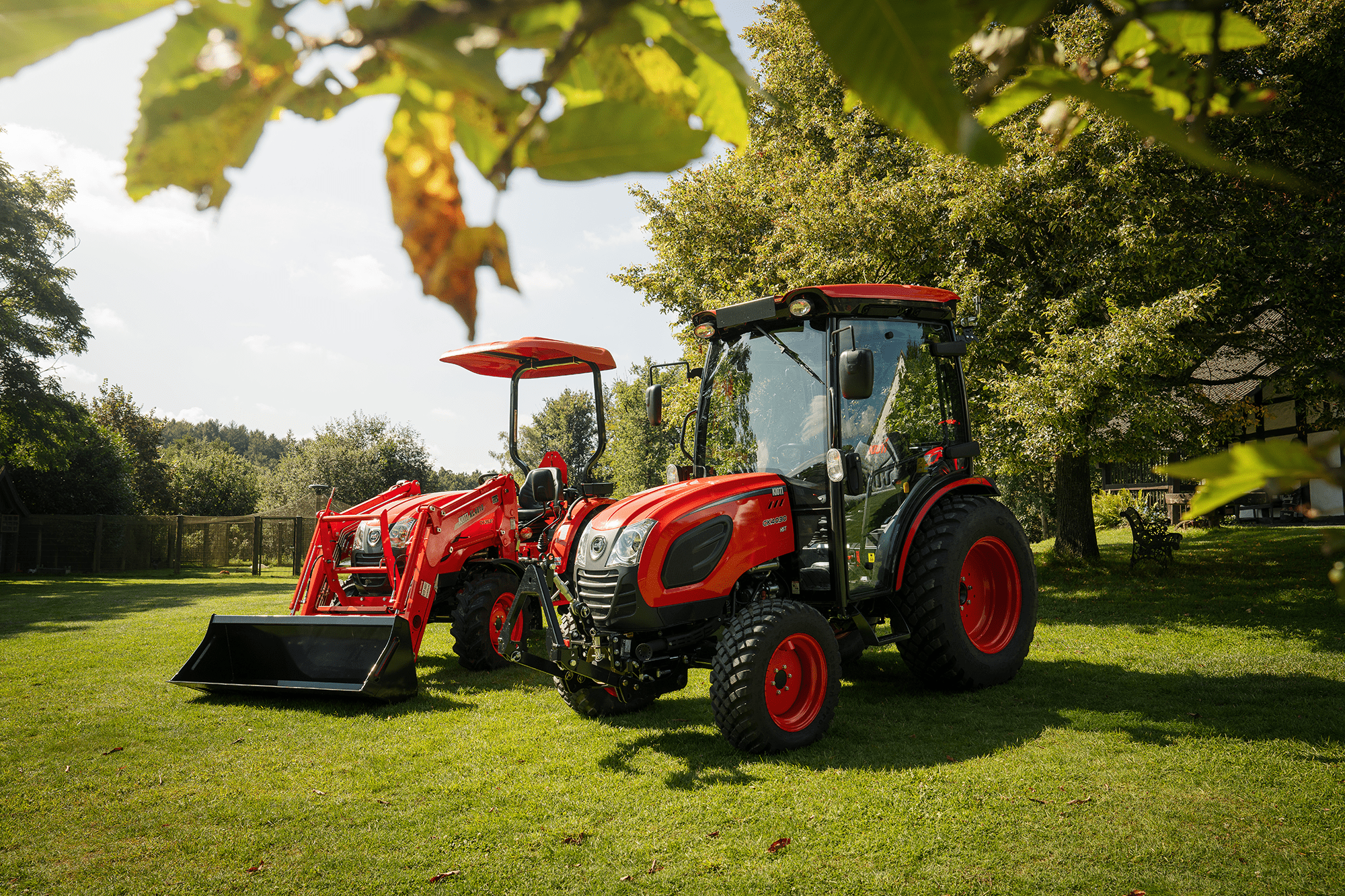

CK20 Series Compact Tractors

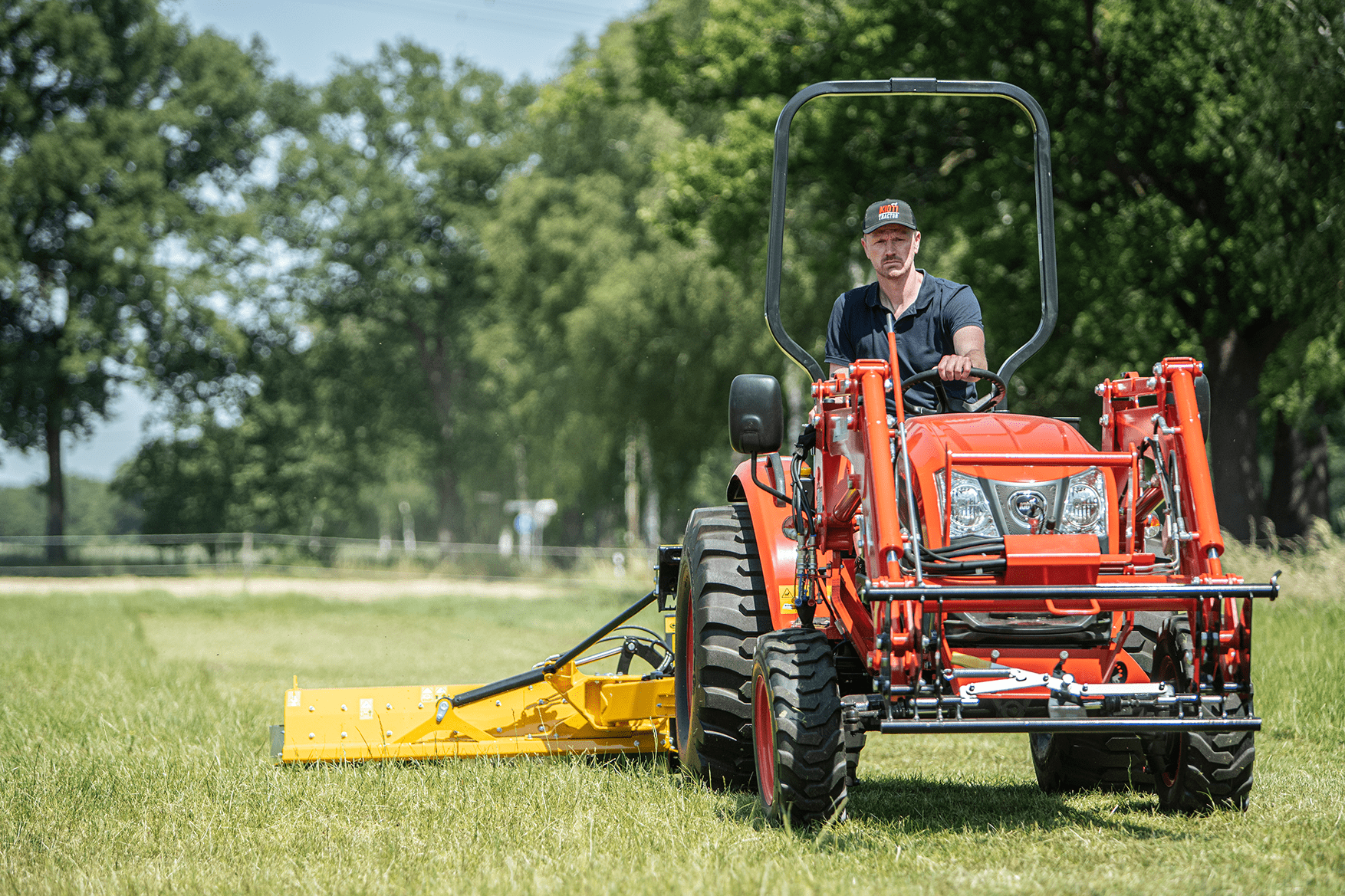

The KIOTI CK Series are designed for large property owners, small-scale farmers, landscapers, contractors, and small business owners who demand additional power and performance in a compact tractor. With a range of models from 25 to 50 horsepower, the CK Series offers the power and versatility you need to tackle any job, from mowing lawns, tilling, digging, hauling, transporting and clearing snow with ease.
More Power, More Performance
-

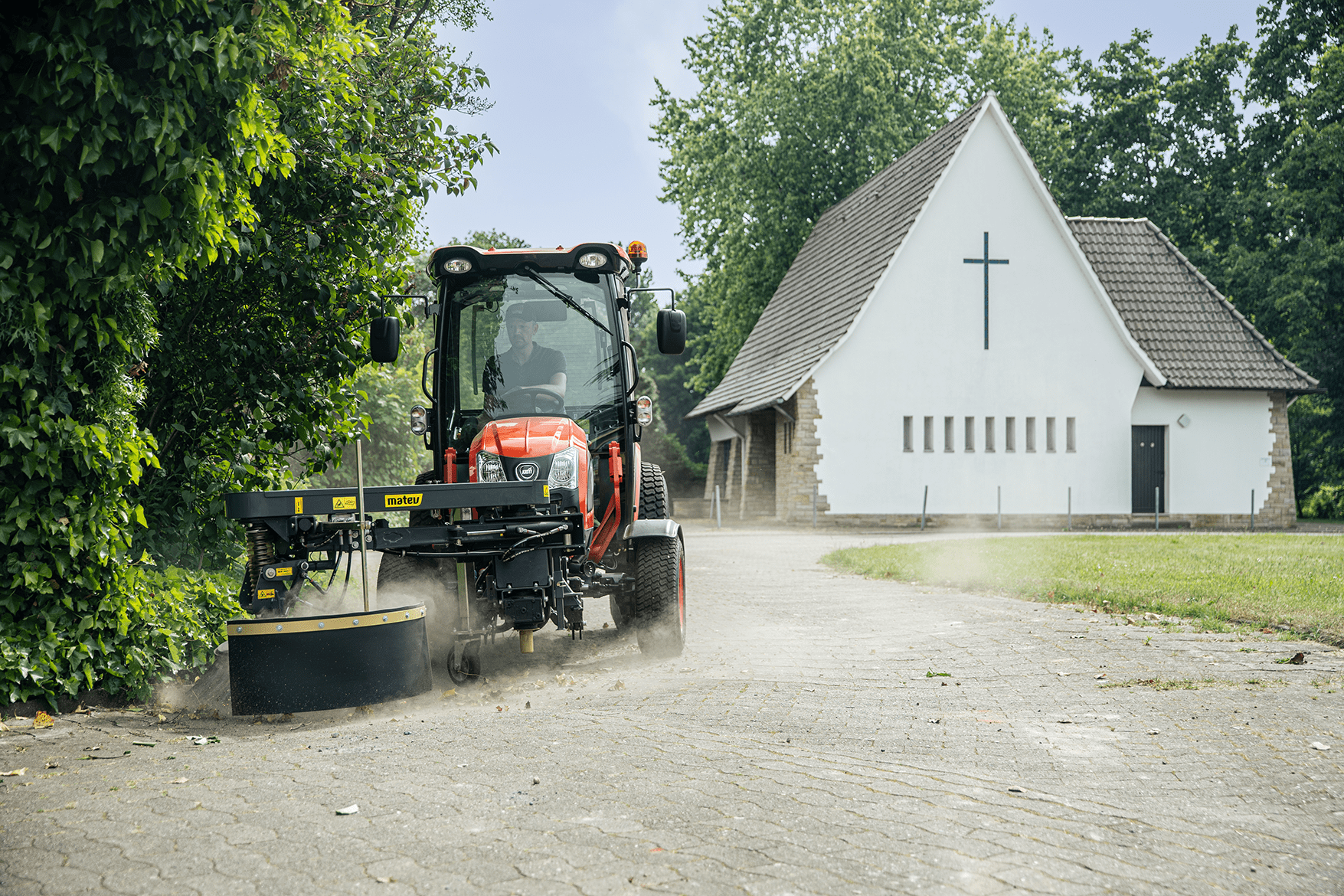

MAXIMUM FLEXIBILITY
With front, middle and rear attachment options, a wide range of attachments can be operated
-

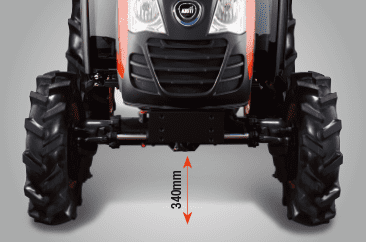

PORTAL AXIS
The fully encapsulated, low-maintenance portal axle ensures high ground clearance and tight turning radii. It is also low-maintenance and has little wear.
-

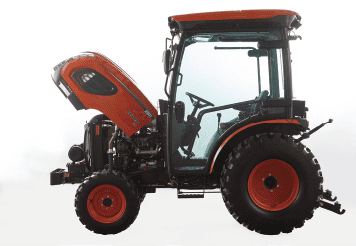

ONE-PIECE HOOD
The one-piece hood is easy to open and allows quick access to the machine’s maintenance points.
-

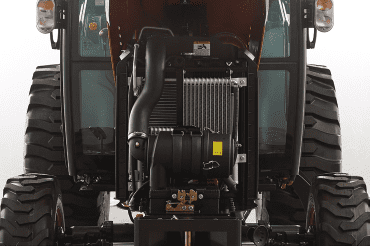

KIOTI DIESEL ENGINE
The Stage V engines with Common Rail Diesel Injection (CRDI) technology in the CK series not only meet current environmental standards, they also have high torque, are fuel efficient and run smoothly.
-

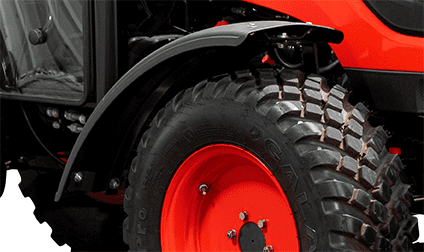

FRONT WHEEL FENDER
Swivel or fixed front mudguards are optionally available for the CK series models
-

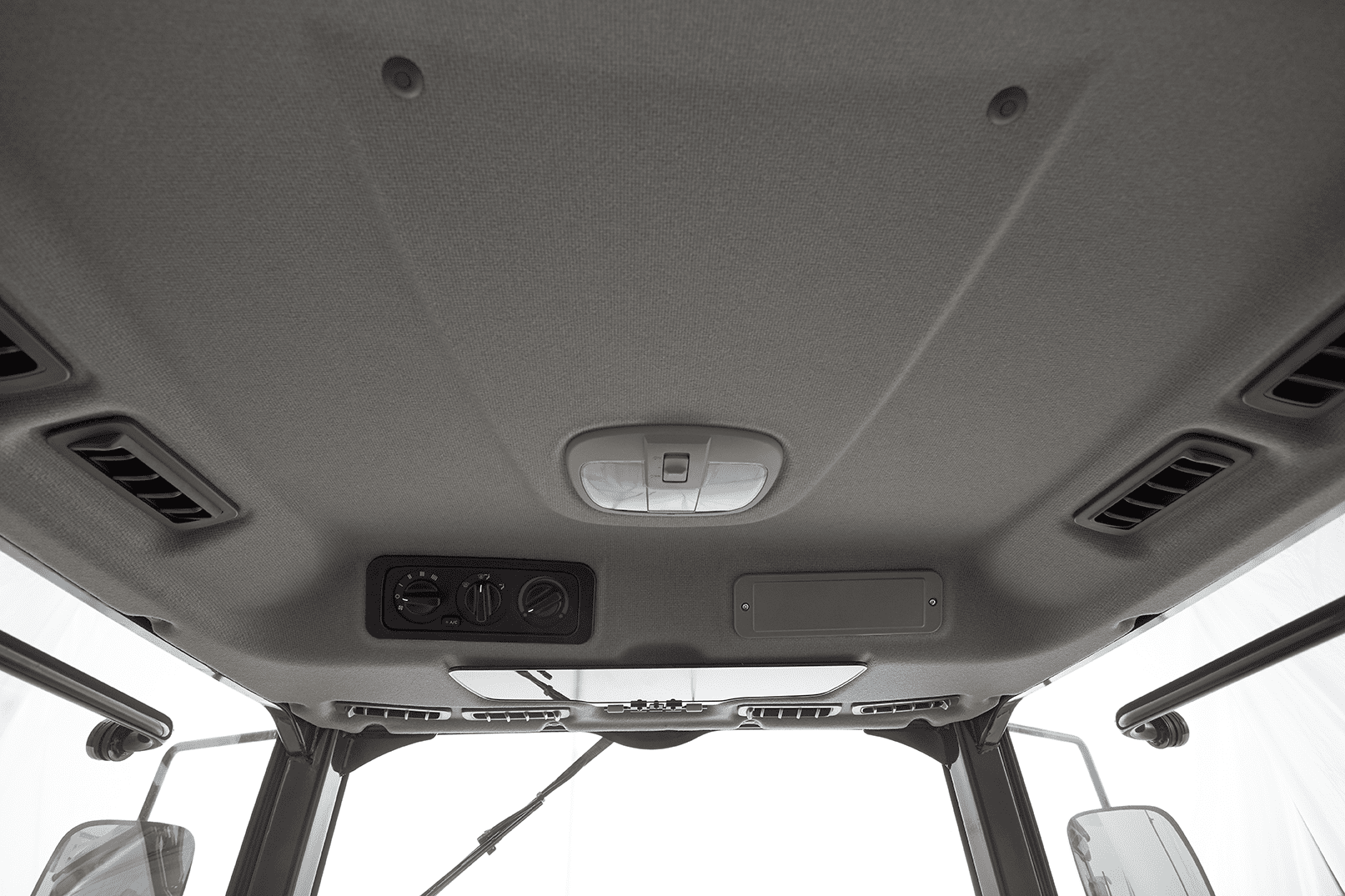

AIR CONDITIONING SYSTEM
Whether summer or winter, the cab is always at the right temper ature thanks to the standard air conditioning and heating system.
-
ILLUMINATED GAUGES
The illuminated displays are easy to read both in bright daylight and at night.
-

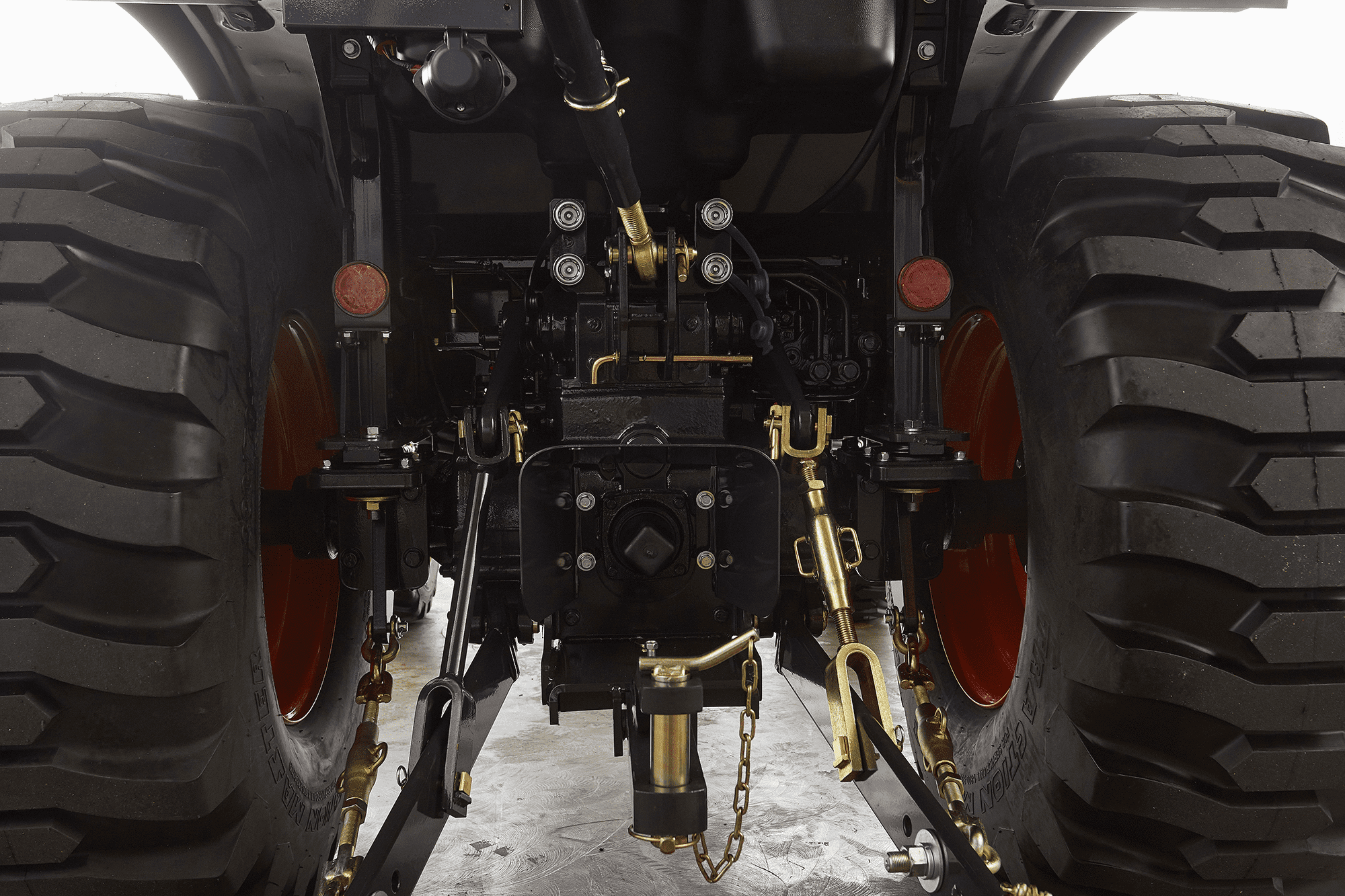

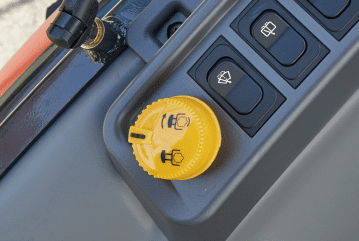

INDEPENDENT PTO ENGAGEMENT
The rear PTO on the CK Series can be easily activated using the rotary knob and can be switched on either manually or via Auto PTO.
-
WINDSHIELD WIPERS & HEATING
The windshield wipers (rear optional) and windshield heating ensure good visibility in all weather for year-round use.
-

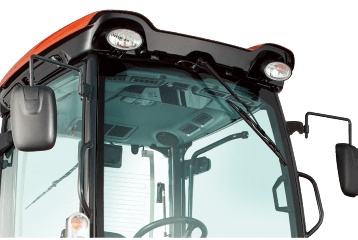

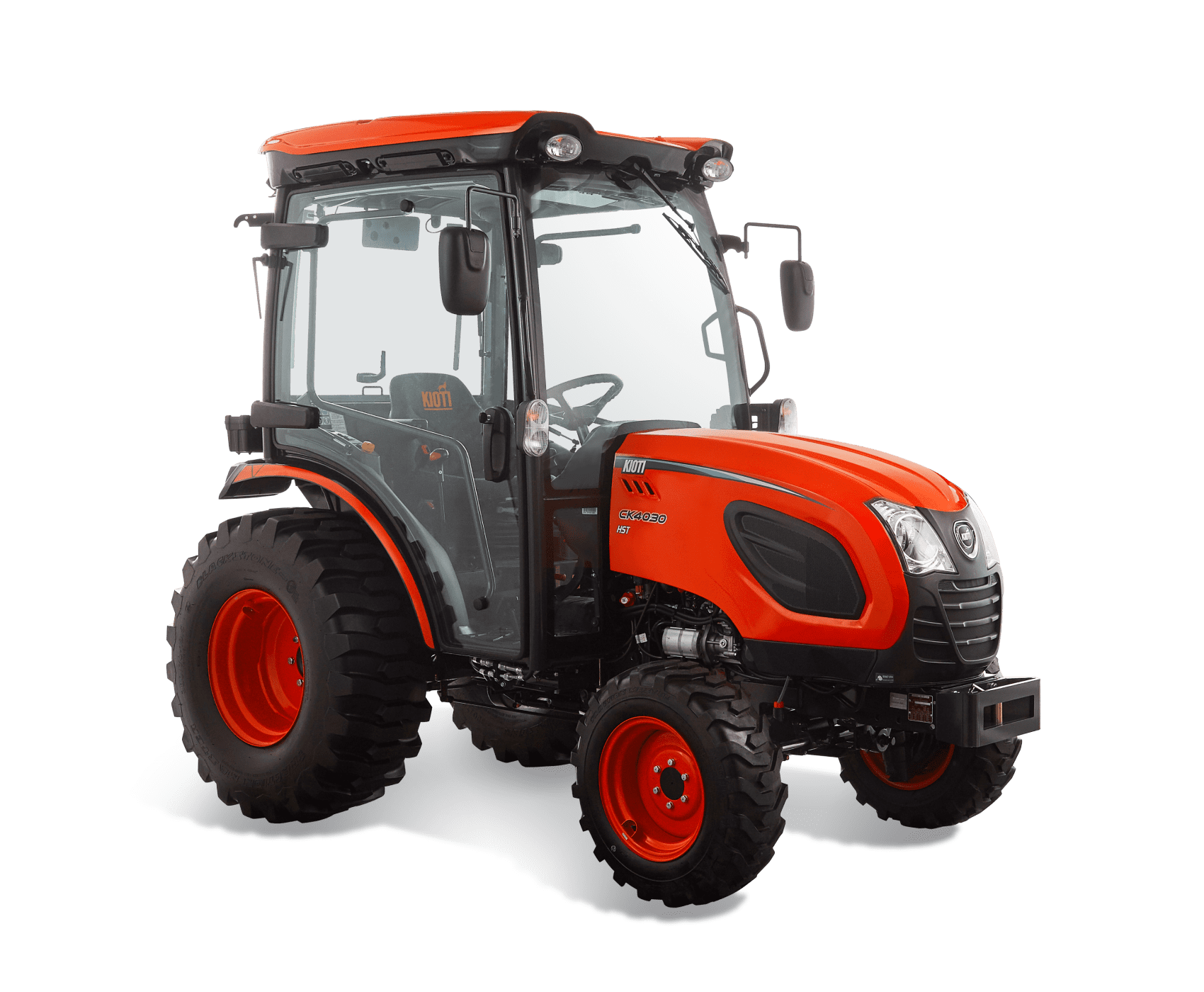

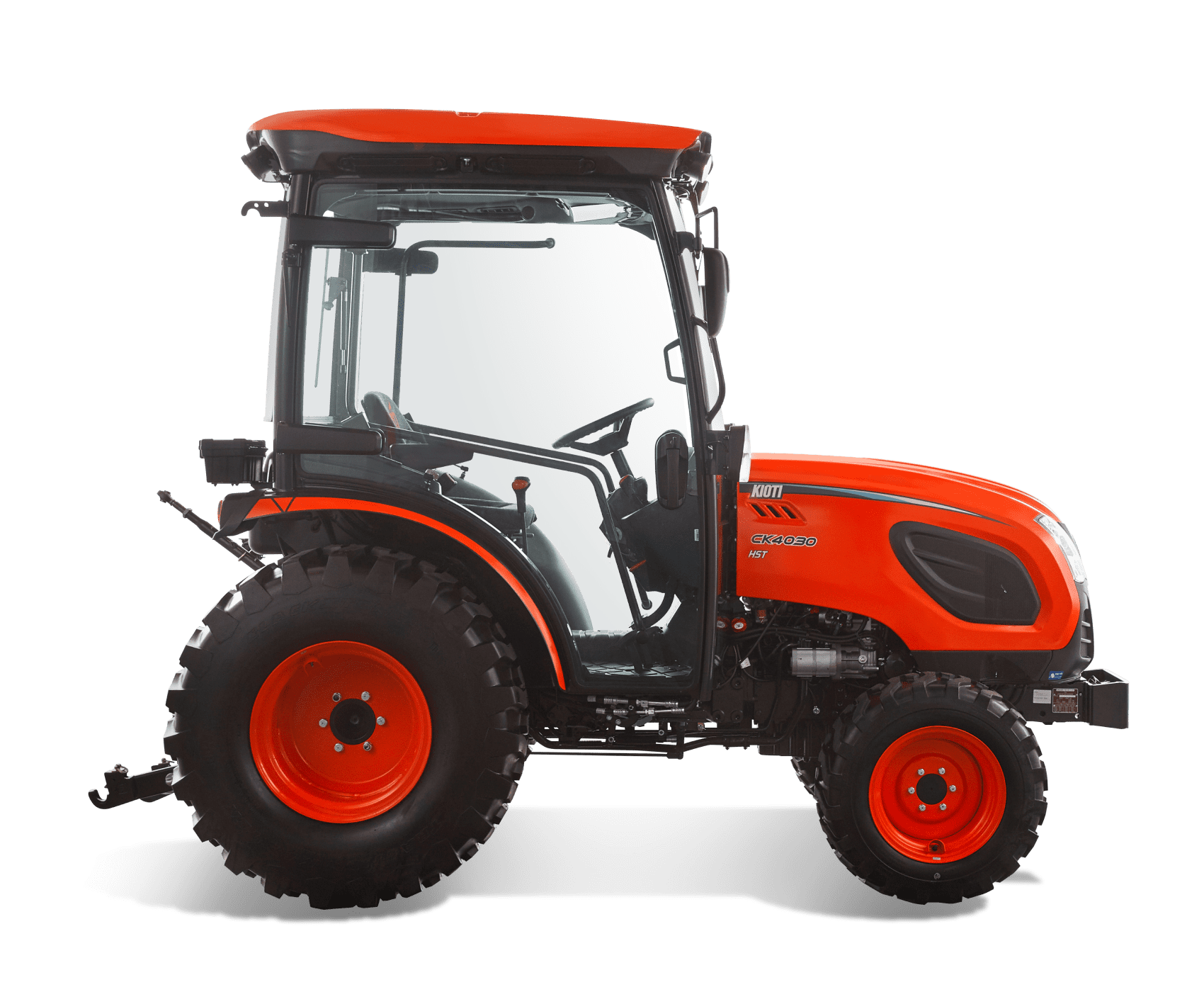

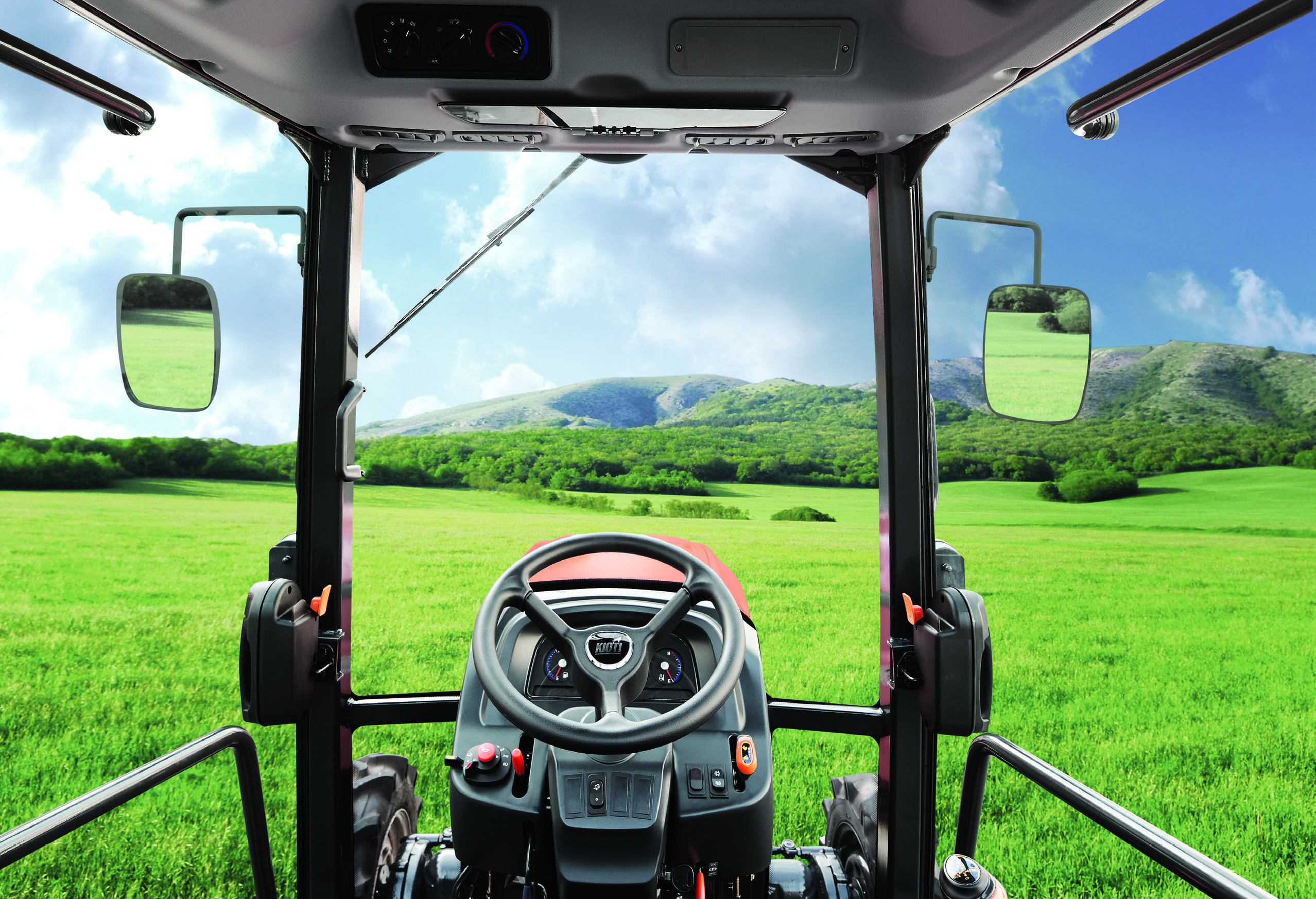

WORK CAB
The high windows of the 4-post factory cab offers the best possible all-round visibility. Wide-opening doors and high-quality workmanship satisfies all.
Don't take our word for it.
Read for yourself what others are saying about their KIOTI.

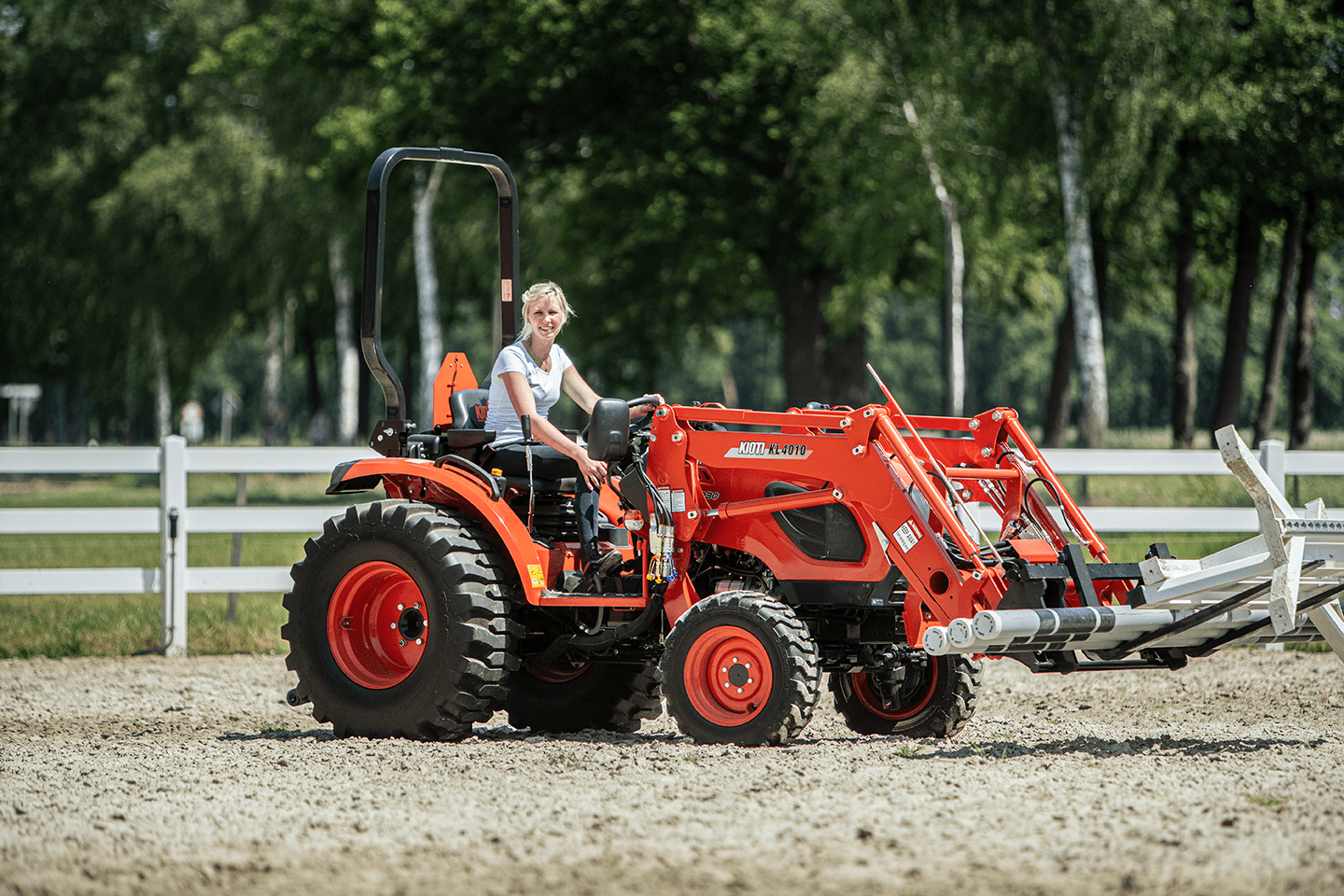

We decided to buy a new compact tractor to maintain our show and riding arenas. I didn’t know the KIOTI brand at first, did some research and was reassured to see that it was a South Korean manufacturer. The cliché that all machines from Asia are inferior certainly doesn’t apply to KIOTI. We use a slightly oversized drag for this tractor to maintain the arena, and the CK3510 handles it with ease. As an experienced riding arena caretaker, I quickly learned to appreciate the advantages of the KIOTI: very maneuverable, the hydrostat works perfectly, and the rear hydraulics are incredibly fast. I have never experienced such agility with other tractors. And considering the ergonomics: It’s easy to get on, you have space, and the controls are always within easy reach. The CK3510 from KIOTI easily meets our requirements.
Hartmut Cordes, Elmloher Reitertage, GeestlandGallery
Specifications
- Model
Engine
| Manufacturer | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | 3A165LWM-E1 | 3A165LWM-E1 | 3A165LWM-E1 | 3H-TM5B | 3H-TM5B | 3H-TM5B | 3H-TH5B | 3H-TH5B | 3H-TM5B | 3H-TM5B | 3H-TM5B | 3H-TM5B | 3H-TM5B | 3H-TM5B | 3HT-TM5E | 3HT-TM5E | 3HT-TM5E | 3HT-TM5E | 3HT-TM5E | 3HT-TM5E |
| Engine Gross Power HP (kw) | 24.5 (18.3) | 24.5 (18.3) | 24.5 (18.3) | 34.9 (26) | 34.9 (26) | 34.9 (26) | 34.9 (26) | 34.9 (26) | 39.6 (29.5) | 39.6 (29.5) | 39.6 (29.5) | 39.6 (29.5) | 39.6 (29.5) | 44.9 (33.5) | 44.9 (33.5) | 44.9 (33.5) | 50.3 (37.5) | 50.3 (37.5) | 50.3 (37.5) | 50.3 (37.5) |
| Engine Gross Power (97/68EC) HP (kw) | 24.5 (18.3) | 24.5 (18.3) | 24.5 (18.3) | 34.9 (26) | 34.9 (26) | 34.9 (26) | 34.9 (26) | 34.9 (26) | 39.6 (29.5) | 39.6 (29.5) | 39.6 (29.5) | 39.6 (29.5) | 39.6 (29.5) | 44.9 (33.5) | 44.9 (33.5) | 44.9 (33.5) | 50.3 (37.5) | 50.3 (37.5) | 50.3 (37.5) | 50.3 (37.5) |
| Engine Gross Power (ECE-R120) HP (kw) | 24.5 (18.3) | 24.5 (18.3) | 24.5 (18.3) | 34.9 (26) | 34.9 (26) | 34.9 (26) | 34.9 (26) | 34.9 (26) | 39.6 (29.5) | 39.6 (29.5) | 39.6 (29.5) | 39.6 (29.5) | 39.6 (29.5) | 44.9 (33.5) | 44.9 (33.5) | 44.9 (33.5) | 50.3 (37.5) | 50.3 (37.5) | 50.3 (37.5) | 50.3 (37.5) |
| Engine Base Power HP (kw) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Engine Boost Power HP (kw) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Rated revolution (RPM) | 2400 | 2400 | 2400 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
| Max. Torque (Nm) | 84 | 84 | 84 | 115 | 115 | 115 | 115 | 115 | 118 | 118 | 118 | 118 | 118 | 148 | 148 | 148 | 166 | 166 | 166 | 166 |
| Torque Reserve Percentage (%) | 15 | 15 | 15 | 15 | 20 | 20 | 20 | 20 | 20 | 9 | 9 | 9 | 9 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| No. of cylinders | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Total Displace cc (cu) | 1647 | 1647 | 1647 | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) | 1826 (111.4) |
Capacity
| Fuel tank (ℓ) | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Urea tank (ℓ) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
PTO
| Rated PTO Power/RPM (HP) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum PTO Power (HP) | 20 | 19 | 19 | 31 | 31 | 31 | 30 | 30 | 34 | 34 | 34 | 33 | 33 | 39 | 38 | 38 | 44 | 44 | 43 | 43 |
| Maximum PTO Power (HP/RPM) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Rear PTO | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Rear PTO Type | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent |
| Rear PTO (RPM) | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E | 540/540E |
| Mid PTO (RPM) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Ground PTO | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Hydraulic
| 3 Point Lift Control Type | Position, Draft, Mixed Control | Position | Position | Position | Position, Draft, Mixed Control | Position | Position | Position | Position | Position, Draft, Mixed Control | Position | Position | Position | Position, Draft, Mixed Control | Position | Position | Position, Draft, Mixed Control | Position | Position | Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Implement Pump (ℓ/min) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Power Steering Pump (ℓ/min) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Total hydraulic flow (ℓ/min) | 39.6 | 39.6 | 39.6 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 |
| 3-point hitch type | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 |
| Lower Link type | Ball | Ball | Quick | Ball | Ball | Quick | Ball | Quick | Ball | Ball | Quick | Ball | Quick | Ball | Ball | Quick | Ball | Quick | Ball | Quick |
| at lift point (Max.) (kg.f) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| at lift point (Horizontal position) (kg.f) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Lift capacity at lift point | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Lift capacity at 24 in.behind lift point | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| at 610mm point (Through the full range) (kg.f) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| No. of standard remote valves (Front/Rear) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| No. of Std. remote valve's ports (Rear) | 2 port | 2 port | 4 port | 2 port | 2 port | 4 port | 2 port | 4 port | 2 port | 2 port | 4 port | 2 port | 4 port | 2 port | 2 port | 4 port | 2 port | 4 port | 2 port | 4 port |
Drive Train
| Transmission | Manual | HST | HST | Manual | Manual | Manual | HST | HST | Manual | Manual | Manual | HST | HST | Manual | HST | HST | Manual | Manual | HST | HST |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of speeds | 12 x 12 | 3 | 3 | 12 x 12 | 12 x 12 | 12 x 12 | 3 | 3 | 12 x 12 | 12 x 12 | 12 x 12 | 3 | 3 | 12 x 12 | 3 | 3 | 12 x 12 | 12 x 12 | 3 | 3 |
| Mechanical Differential Lock | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shuttle Type | Synchro shuttle | Hydrostatic Drive | Hydrostatic Drive | Synchro shuttle | Synchro shuttle | Synchro shuttle | Hydrostatic Drive | Hydrostatic Drive | Synchro shuttle | Synchro shuttle | Synchro shuttle | Hydrostatic Drive | Hydrostatic Drive | Synchro shuttle | Hydrostatic Drive | Hydrostatic Drive | Synchro shuttle | Synchro shuttle | Hydrostatic Drive | Hydrostatic Drive |
| Hi-Low | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Brake Type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type |
| Main Brake Type | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Parking Brake Type | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Main Clutch Type | Dry single | none | none | Dry single | Dry single | Dry single | none | none | Dry single | Dry single | Dry single | - | - | Dry single | - | - | Dry single | Dry single | - | - |
| Front Wheel Drive System | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
| PTO Type (PTO RPM) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Traveling Speeds
| Forward (km/h) | 1.31~19.78 | 0~16.11 | 0~16.11 | 1.65~25.00 | 1.65~25.00 | 1.65~25.00 | 0~25.48 | 0~25.48 | 1.65~25.00 | 1.65~25.00 | 1.65~25.00 | 0~25.48 | 0~25.48 | 1.65~25.00 | 0~25.48 | 0~25.48 | 1.65~25.00 | 1.65~25.00 | 0~25.48 | 0~25.48 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reverse (km/h) | 1.27~19.27 | 0~11.28 | 0~11.28 | 1.61~24.36 | 1.61~24.36 | 1.61~24.36 | 0~17.58 | 0~17.58 | 1.61~24.36 | 1.61~24.36 | 1.61~24.36 | 0~17.58 | 0~17.58 | 1.61~24.36 | 0~17.58 | 0~17.58 | 1.61~24.36 | 1.61~24.36 | 0~17.58 | 0~17.58 |
Dimensions
| Overall length (w/o front weight and w/o 3pt hitch) (mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Overall length (w/o front weight and w/3pt hitch) (mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Overall length (w/weight support and w/3pt hitch) (mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Overall length (includes 3-pt hitch) (mm) | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 | 3063 |
| Overall length (without 3-pt hitch) (mm) | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 | 2768 |
| Overall length (with 3 point & front weight) (mm) | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 | 3486.5 |
| Overall length (w/front weight and w/3pt hitch) (mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Overall width (minimum tread) (mm) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) | 1385 (w/AG Tire) |
| Overall height (ROPS) (mm) | 2118 (w/AG Tire) | 2507 (w/AG Tire) | - | 2507 (w/AG Tire) | 2118 (w/AG Tire) | - | 2507 (w/AG Tire) | - | 2507 (w/AG Tire) | 2118 (w/AG Tire) | - | 2507 (w/AG Tire) | - | 2118 (w/AG Tire) | 2507 (w/AG Tire) | - | 2118 (w/AG Tire) | - | 2507 (w/AG Tire) | - |
| Overall height (CAB) (mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Wheel base in. (mm) | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 |
| Tread Width (Front) (mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Tread Width (Rear) (mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Ground Clearence in. (mm) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) | 340(w/AG Tire) |
| Turning radius(w/o brake) (mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Turning radius (w/brake) (mm) | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 | 2,450 |
| Weight with ROPS (kg.f) | - | - | - | - | - | - | - | - | - | - | - | 1360 | - | 1412 | 1360 | - | 1412 | - | 1360 | - |
| Weight with Cabin and AG tires (kg.f) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Max. Permissible Weight (EEC Standard) (kg.f) | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 | 2625~2800 |
Tire Size
| AG Tire - Front | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AG Tire - Rear | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-16/6 | 11.2-24 |
| Turf Tire - Front | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Turf Tire - Rear | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Industrial Tire - Front | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Industrial Tire - Rear | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Radial - Front | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Radial - Rear | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
